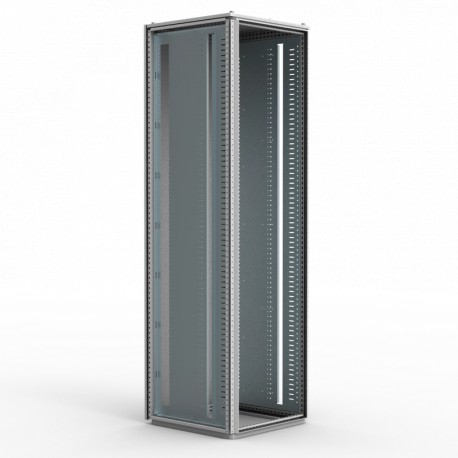

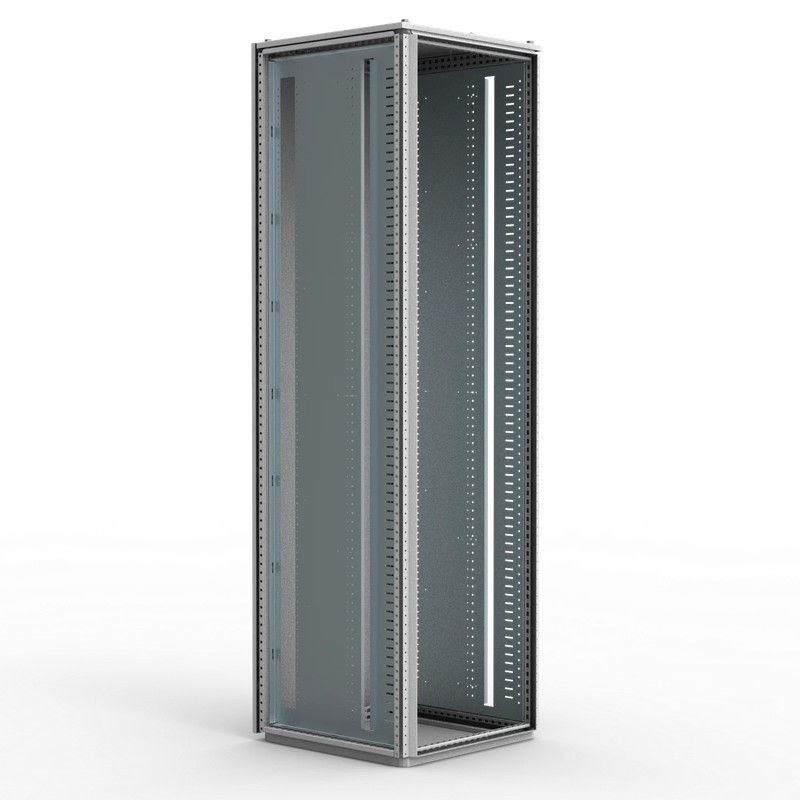

ELDON MSPS2205 MSPS2205 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MSPS2205 ELDON Panels lat. internal,2200x500, for each section of the wires, d 537

Reference: MSPS2205

Manufacturer: ELDON

Description:

Panels lat. internal,2200x500, for each section of the wires, d=537
Internal side panels, 2200x500, for cables section, d=537

Categories:

  • Cabinet enclosures > Side/back panel (switchgear cabinet)
  • ELDON > Power and distribution

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 175,60 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

  • Description: Internal side panels to build up sections as from the enclosure frame. Frame hole pattern is needed in front, rear, top and bottom.
  • Material: 1.5 mm galvanized steel.
  • Delivery: 1 piece with mounting material.
  • The side panels segregate vertical sections, allowing customer's to mount main busbar supports (MSHS) and other accessories
  • A flexible solution for both fix and plug-in systems
  • The side panels allow customers to build up power distribution configurations to meet form 4 segregation according to IEC 61439
  • Hole patterns are required in the top, bottom, front and rear of the enclosure, in order to mount the internal side panels

ETIM for MSPS2205 Cabinets and enclosures (EC002524)

Feature nameWidth (EF000008)
Feature value500.00 mm
Feature nameHeight (EF000040)
Feature value2.20 mm
