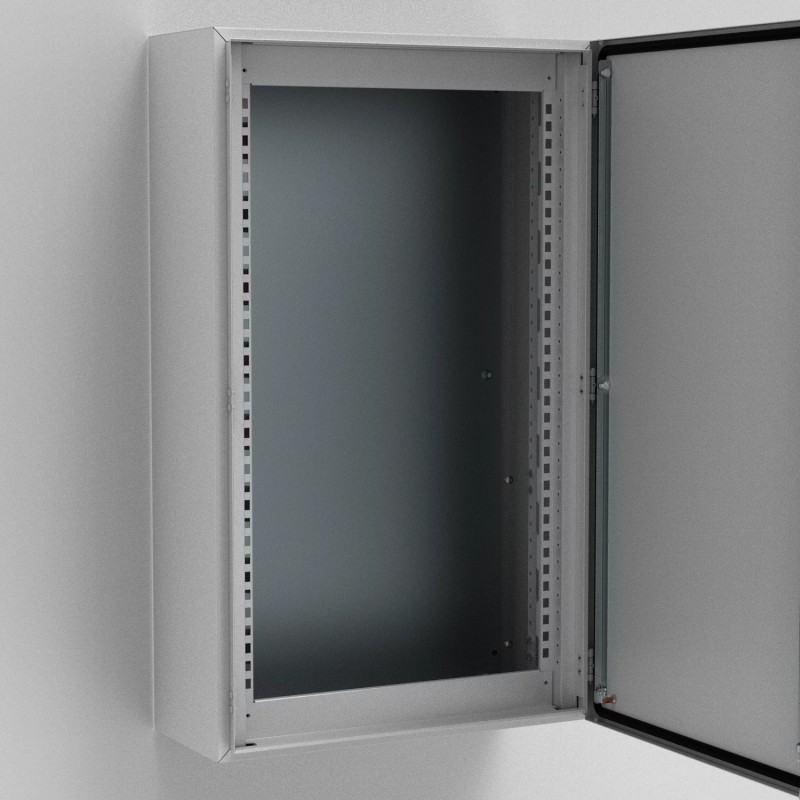

MSMSM1008 ELDON Modular frame, 1000x800, for murals
MSMSM1008
ELDON
Modular frame, 1000x800, for murals
Modular system frame, 1000x800, for Wall Mounted enclosures
Cabinet enclosures > Mounting accessories (switchgear cabinet)
Power and distribution
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: Two single vertical profiles, which can be used both for front covers and assembly of components. A cost effective solution for panel builders, reducing assembly time, which also enables assembly outside the enclosure. Useful height for front covers is, Height – 100 mm.
- Material: 1.5 mm steel.
- Finish: RAL 7035.
- Pack quantity: 1 kit.
- Mounting requirements: To be assembled on MAS and ASR enclosures.
- The frame provides customers with a cost effective solution for small sized power distribution panels
- The frame ensures that both modular and non-modular components can be installed into the same enclosure
- Customers can assembly the frame outside of the enclosure, if required, which saves installation time as well as labour cost
- Pack quantity: 1 kit
| Atributo del producto | Valor |
|---|---|
| Height | 1000 mm |
| Width | 800 mm |
| Enclosure Material | Mild Steel |
| Product Family | Wall-Mounted |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5 mm |
| UPC | 783510520847 |
| EAN | 8713574222939 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | |
| Material (EF002169) | |
| Width (EF000008) | 800.00 mm |
| Height (EF000040) | 1.00 mm |
| Depth (EF000049) | None mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MSMSM1008 MSMSM1008 EN_MSMSM0606.pdf | 114 Kbytes |
|
