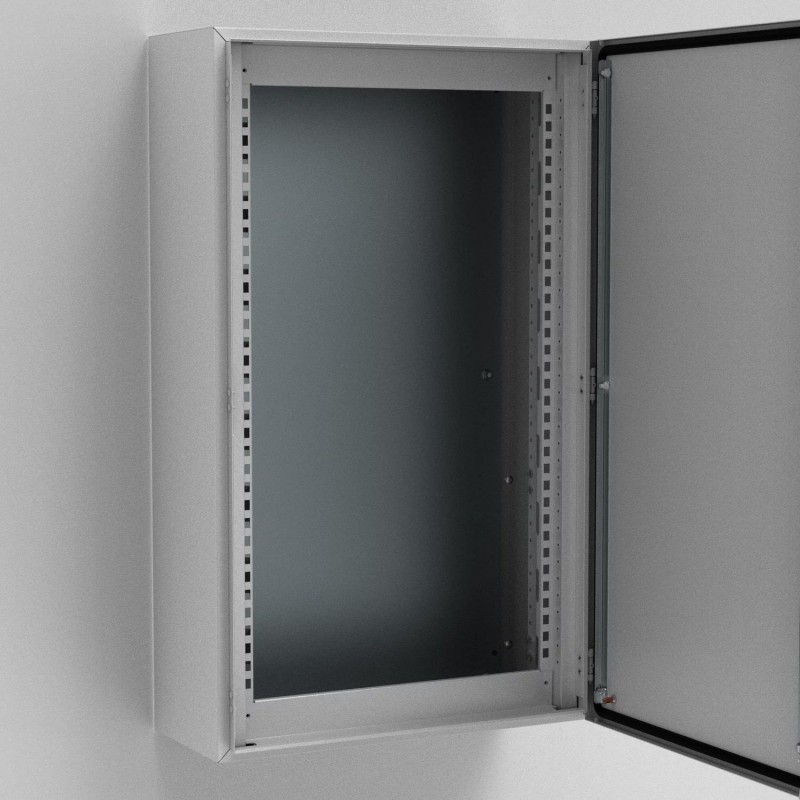

MSMSM0806 nVent HOFFMAN Modular frame, 800x600, murals
MSMSM0806
ELDON
Modular frame, 800x600, murals
The mild steel modular system frame for wall mounted enclosures, MSMSM, has two mounting levels. The first is for fixing front panels and the second for mounting equipment. The frame can be equipped before mounting in the enclosure and allows for the use of both modular and non-modular components.
Cabinet enclosures > Mounting accessories (switchgear cabinet)
Power and distribution
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Often bought together
▲Best sellers
▲More info
▲Technical data
Description: | Two single vertical profiles, which can be used both for front covers and assembly of components. A cost effective solution for panel builders, reducing assembly time, which also enables assembly outside the enclosure. Useful height for front covers is, Height – 100 mm. |
Material: | 1.5 mm steel. |
Finish: | RAL 7035. |
Pack quantity: | 1 kit. |
Mounting requirements: | To be assembled on MAS and ASR enclosures. |
Features
Feature: | Mild steel modular system frame for wall mounted enclosures, with two mounting levels, the first for mounting front panels and the second for installing equipment . |
Advantage: | A flexible solution that allows customers to design a customized power distribution enclosure solution made up of DIN rails and adjustable mounting plates, to meet customer specific requirements. |
Benefit: | The frame provides customers with a cost effective solution for small sized power distribution panels. The frame ensures that both modular and non-modular components can be installed into the same enclosure. Customer's can assembly the frame outside of the enclosure, if required, which saves installation time as well as labour cost. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 76 Mbytes |
|
| MSMSM0806 MSMSM0806 EN_MSMSM0606.pdf | 114 Kbytes |
|
| Download general catalog |
|
