MPW1810
ELDON
1
Available Ship on today

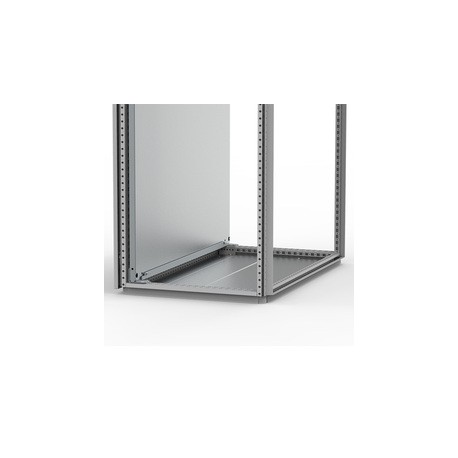

Mounting plate, 1800x1000 MPW1810
Mounting plate, 1800x1000, galvanised steel, extra wide
The extra wide mounting plate offers more mounting space and can be fully equipped before being fitted within the enclosure. It can be fitted from the side of the enclosure since, it is wider than the front of enclosure opening.
Energy distribution systems > Mounting plate for distribution board
Steel Floor Standing Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Description: | Creates an installation surface over the full width of the enclosure. Easy installation by use of sliding profiles MTS from the side. Nominal width equals the enclosure width. When combining enclosures the MPWs can be connected and slid in as one installation surface. Can not be mounted in the rearmost position. |
Material: | 3 mm galvanized steel. |
Pack quantity: | 1 piece with mounting accessories. |
Mounting requirements: | Add sliding profiles MTS. MPW fits in combinable enclosures only. |
Feature: | A wider mounting plate than the default mounting plate, MP. |
Advantage: | The mounting plate takes the full enclosure width resulting in 100 mm additional mounting surface for each configuration, compared to the default mounting plate (MP) in combination with the filler plate (MPF), if multiple enclosures are bayed together. Components may be mounted outside the enclosure, which is not possible if the interior of a bayed configuration includes an MP and an MPF. |
Benefit: | Fast mounting of components and more mounting surface inside the enclosure. |
Title: | Size: | Type: |
---|---|---|
MPW1810 MPW1810 EN_MPW1805.pdf | 151 Kbytes | |
Download general catalog |
