ACM10080R5 ELDON Modular support, 1000x800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

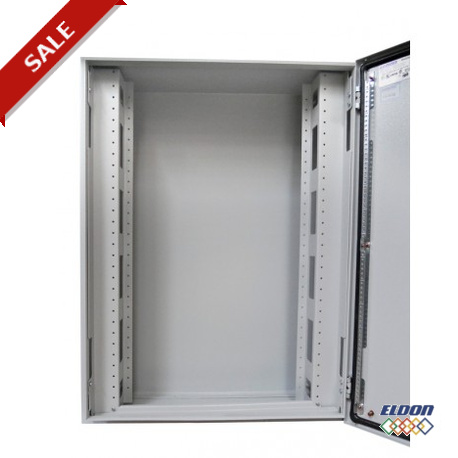

ACM10080R5 ELDON Modular support, 1000x800



Modular support, 1000x800

More details

Control Cabinets Switch Boxes Distribution Enclosures

Power and distribution

Power and distribution accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

* This article is obsolete. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Related products

More info

Height1000 mm
Width800 mm
Steps of 50 mm18
N° of modules35


Support kit for the mounting of the modular panels and components by steps of 150 mm. A space for equipment of 46 mm high is provided. Independent of the depth of the enclosure, the system can be used in combination with glazed door and a mounting plate is still usable. 50 mm of space is provided for the equipment between the door and the panels. In order to allow easy installation of the equipment and the wiring, the system can be assembled, fully equipped and pre-wired outside the enclosure, and then fitted into the enclosure. Cut-outs are provided on the sides of the vertical profiles for cable routing. The kit contains two vertical profiles, top and bottom blanking plates and fixing material.


1.35 mm steel plate. Structure powder paint, RAL 7035.

Pack quantity:

1 kit with fitting material.
