ACM10060R5
ELDON
1
Available Ship on today

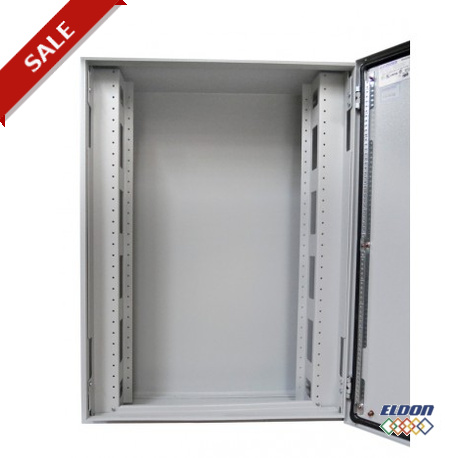

Modular support, 1000x600
Power and distribution
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Characteristics | |
---|---|
Height | 1000 mm |
Width | 600 mm |
Steps of 50 mm | 18 |
N° of modules | 24 |
Description: | Support kit for the mounting of the modular panels and components by steps of 150 mm. A space for equipment of 46 mm high is provided. Independent of the depth of the enclosure, the system can be used in combination with glazed door and a mounting plate is still usable. 50 mm of space is provided for the equipment between the door and the panels. In order to allow easy installation of the equipment and the wiring, the system can be assembled, fully equipped and pre-wired outside the enclosure, and then fitted into the enclosure. Cut-outs are provided on the sides of the vertical profiles for cable routing. The kit contains two vertical profiles, top and bottom blanking plates and fixing material. |
Material: | 1.35 mm steel plate. Structure powder paint, RAL 7035. |
Pack quantity: | 1 kit with fitting material. |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: ACM10060R5 | 169 Kbytes | |
Complete catalogue 1: ACM10060R5 | 4 Mbytes | |
Download general catalog |
