ELDONStainless steel enclosuresMCSS20108RD25 ELDON Self-supporting, 2000x1000x800, Combinable, 1 door, with MP, p. rear, ac. stainless stee..

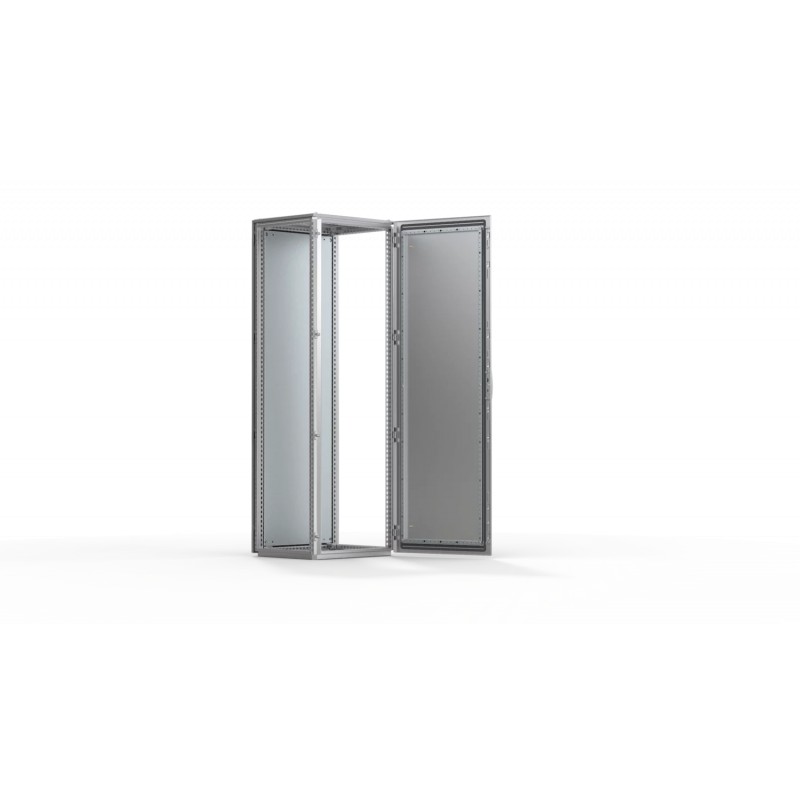

ELDON MCSS20108RD25 MCSS20108RD25 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

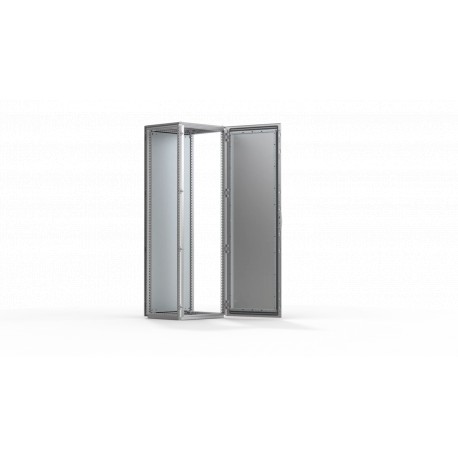

MCSS20108RD25 ELDON Self-supporting, 2000x1000x800, Combinable, 1 door, with MP, p. rear, ac. stainless stee..

Reference: MCSS20108RD25

Manufacturer: ELDON

Description:

Self-supporting, 2000x1000x800, Combinable, 1 door, with MP, p. rear, ac. stainless steel 316, IP66
Floor stand., 2000x1000x800, Combinable encl. 1-door with MP r-door SS 316, IP66
Floor standing, 2000x1000x800, Combinable enclosure, 1-door, with MP, r-door, SS 316, IP66

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Stainless steel enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 11.428,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: AISI 316L pre-grained stainless steel. Frame: 1.5 mm. Door: 2 or 2.5 mm. Rear, roof and bottom plate: 2 or 2.5 mm. Mounting plate: 3 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
  • Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear: Rear panel fitted by M6 tork screw. Rear door instead of rear panel. RD version comes with rear door instead of rear panel.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette locking system with lock catcher made in AISI 316L and additional locks in top and bottom for enclosures with W=1000 mm. Swing handle SS 316L with half cylinder keyed EK 333.
  • Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing or two pieces for the rear door version.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is delivered attached on the outside of the enclosure packaging. For Enclosure with rear doors, two mounting plates mounted back to back with MPBB06.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: 240s pre-grained stainless steel (0,5 microns average).
  • Protection: Complies with IP 66 TYPE 4X, 12 IK 10. if are used with SPMSXXXXOG.
  • Approvals: CE, EAC, DNV-GL, GOST, Kema Keur, Lloyds shipping, cULus_listed.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. All packing material is recyclable.
Atributo del producto Valor
Height (H)2000mm
Width (W)1000mm
Depth (D)800mm
Rear Panel IncludedNo
Rear Door IncludedYes
Mounting Plate IncludedYes
MaterialStainless Steel 316
FinishBrushed
Thickness (T)2.5mm
Door Thickness2.5mm
UPC783510500658
EAN8713574228481
Standard Packaging Quantity1
Packing Quantity1

ETIM for MCSS20108RD25 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value1.00 mm
Feature nameHeight (EF000040)
Feature value2.00 mm
Feature nameDepth (EF000049)
Feature value800.00 mm
Feature nameMaterial (EF002169)
Feature valueStainless steel
Feature nameMaterial quality (EF001257)
Feature valueStainless steel 316 (V4A)
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature valueStainless steel
Feature nameRAL-number (EF000116)
Feature value
Feature nameFreestanding (EF020363)
Feature value
Feature nameFloor standing wall model (EF015208)
Feature value
Feature nameSuitable for wall mounting (EF000664)
Feature value
Feature nameCorner model (EF020814)
Feature value
Feature nameIntermediate mounting (EF022994)
Feature value
Feature nameCouplable (EF001229)
Feature value
Feature nameWith mounting plate (EF000118)
Feature valuetrue
Feature nameMounting plate depth-adjustable (EF006054)
Feature valuetrue
Feature nameSuitable for wall built-in (EF007536)
Feature value
Feature namePole fastening (EF009582)
Feature valuefalse
Feature nameNumber of doors (EF000122)
Feature value2.00
Feature nameNumber of locks (EF000123)
Feature value2.00
Feature nameSuitable for metrical mounting (EF005823)
Feature value
Feature namePitched roof (EF009278)
Feature valuefalse
Feature nameEMC-version (EF001062)
Feature valuefalse
Feature nameWith glazed door (EF001089)
Feature valuefalse
Feature nameWith ventilation door (EF006279)
Feature valuefalse
Feature nameWith rear door (EF007381)
Feature valuetrue
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X
Feature nameThermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986)
Feature valueNone W
Feature nameMax. permissible load of the enclosure according to IEC 62208 (EF014987)
Feature valueNone N
Feature nameMax. permissible load of the door(s) according to IEC 62208 (EF014988)
Feature valueNone N
Feature nameMax. permissible load of the mounting plate according to IEC 62208 (EF014989)
Feature valueNone N
