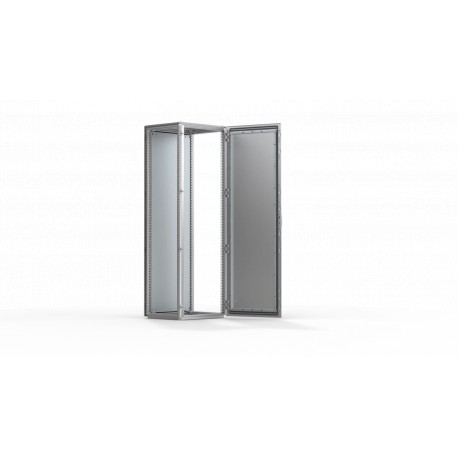

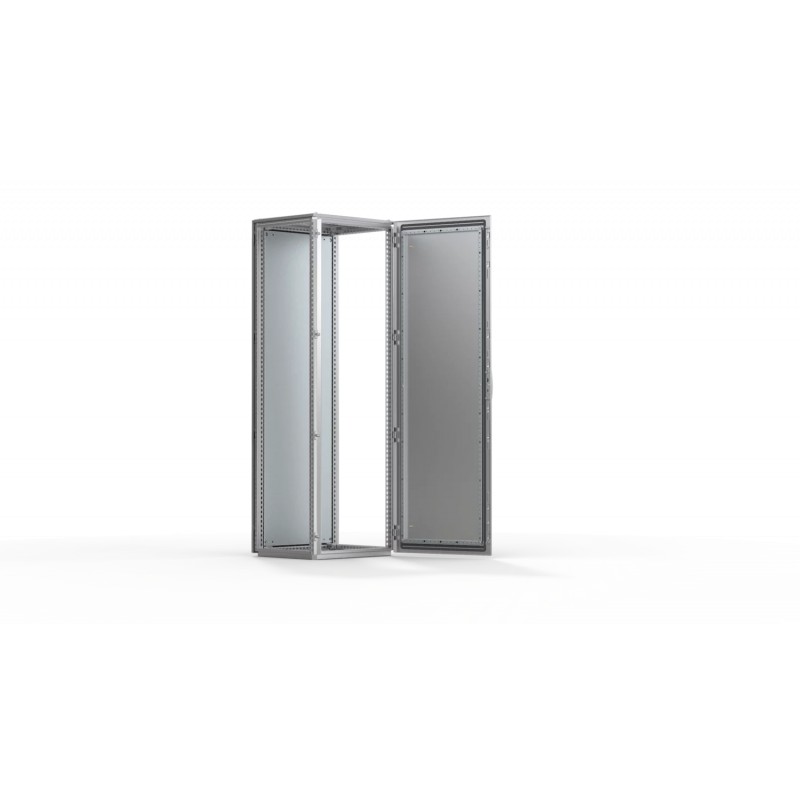

MCSS201010RD25 ELDON Self-supporting, 2000x1000x1000, Combinable, 1 door, with MP, p. rear, ac. stainless st..
MCSS201010RD25
ELDON
Self-supporting, 2000x1000x1000, Combinable, 1 door, with MP, p. rear, ac. stainless steel 316, IP66
Floor stand., 2000x1000x1000, Combinable encl. 1-door with MP r-door SS 316 IP66
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Material: AISI 316L pre-grained stainless steel. Frame: 1.5 mm. Door: 2 or 2.5 mm. Rear, roof and bottom plate: 2 or 2.5 mm. Mounting plate: 3 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
- Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear: Rear panel fitted by M6 tork screw. Rear door instead of rear panel. RD version comes with rear door instead of rear panel.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette locking system with lock catcher made in AISI 316L and additional locks in top and bottom for enclosures with W=1000 mm. Swing handle SS 316L with half cylinder keyed EK 333.
- Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing or two pieces for the rear door version.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is delivered attached on the outside of the enclosure packaging. For Enclosure with rear doors, two mounting plates mounted back to back with MPBB06.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: 240s pre-grained stainless steel (0,5 microns average).
- Protection: Complies with IP 66 TYPE 4X, 12 IK 10. if are used with SPMSXXXXOG.
- Approvals: CE, EAC, DNV-GL, GOST, Kema Keur, Lloyds shipping, cULus_listed.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. All packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 2000mm |
| Width (W) | 1000mm |
| Depth (D) | 1000mm |
| Rear Panel Included | No |
| Rear Door Included | Yes |
| Mounting Plate Included | Yes |
| Material | Stainless Steel 316 |
| Finish | Brushed |
| Thickness (T) | 2.5mm |
| Door Thickness | 2.5mm |
| UPC | 783510500429 |
| EAN | 8713574228443 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 1.00 mm |
| Height (EF000040) | 2.00 mm |
| Depth (EF000049) | 1.00 mm |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 316 |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Stainless steel |
| With mounting plate (EF000118) | Yes |
| Mounting plate depth-adjustable (EF006054) | Yes |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 2.00 |
| Number of locks (EF000123) | 2.00 |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | Yes |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
