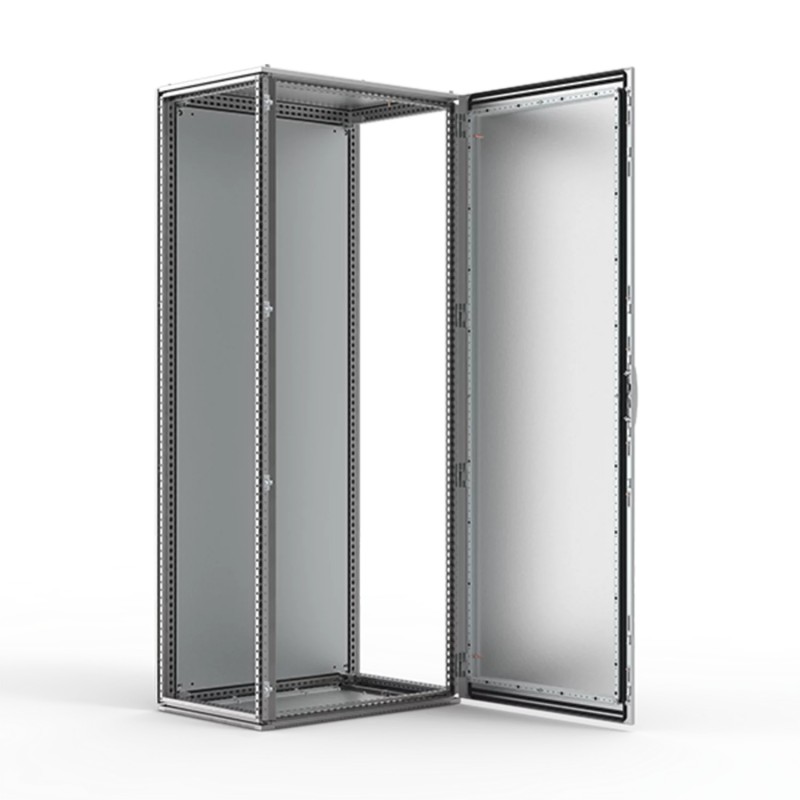

MCSS20086HP ELDON Self-supporting, 2000x800x600, combinable, 1 door, with MP, stainless 304, IP66
MCSS20086HP
ELDON
Self-supporting, 2000x800x600, combinable, 1 door, with MP, stainless 304, IP66
Modular Single Door, MCSS-HP, 2000x800x600mm, Brushed, Stainless Steel
Modular Single Door, MCSS-HP, 2000x800x600mm, Unpainted, Brushed, Stainless
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
- Mounting requirements: For stand-alone installation, add side panels. For combined installation, HPPG01 and baying brackets, CCI and CCM are required.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Protection: Complies with IP 66, TYPE 4X, 12, IK 10.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
- Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- Finish: 400s pre-grained stainless steel (0.5 microns average).
- Door: Mounted with four hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 2000mm |
| Width (W) | 800mm |
| Depth (D) | 600mm |
| Max Mounting Depth | 559mm |
| Material | Stainless Steel |
| Finish | Brushed |
| Body Thickness | 1.5mm |
| Door Thickness | 2mm |
| Weight | 144.5kg |
| UPC | 783510499730 |
| EAN | 8713574227545 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 800.00 mm |
| Height (EF000040) | 2000.00 mm |
| Depth (EF000049) | 600.00 mm |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 |
| Surface finishing (EF006569) | Brushed |
| Colour (EF000007) | Other |
| With mounting plate (EF000118) | Yes |
| Mounting plate depth-adjustable (EF006054) | Yes |
| Suitable for wall built-in (EF007536) | No |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 1.00 |
| Suitable for metrical mounting (EF005823) | No |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP55 |
| Degree of protection (NEMA) (EF011959) | 13 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MCSS20086HP MCSS20086HP EN_MCSS20086HP.pdf | 512 Kbytes |
|
