ELDONStainless steel enclosuresMCSS200810PRD20 ELDON Self-supporting, 2000x800x1000, Combinable, 1 door, without MP, ac. stainless steel 31..

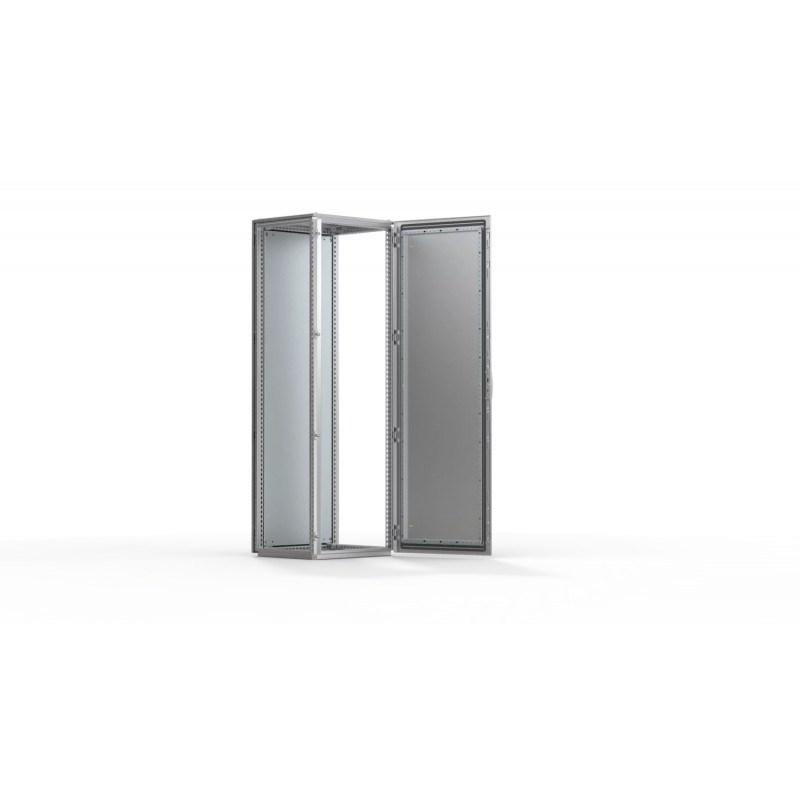

ELDON MCSS200810PRD20 MCSS200810PRD20 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MCSS200810PRD20 ELDON Self-supporting, 2000x800x1000, Combinable, 1 door, without MP, ac. stainless steel 31..

Reference: MCSS200810PRD20

Manufacturer: ELDON

Description:

Self-supporting, 2000x800x1000, Combinable, 1 door, without MP, ac. stainless steel 316, IP66
Floor Standing, 2000x800x1000, Combinable, 1-door, no MP, stainless 316, IP66

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Stainless steel enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 9.855,91 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: AISI 316L pre-grained stainless steel. Frame: 1.5 mm. Door: 2 or 2.5 mm. Rear, roof and bottom plate: 2 or 2.5 mm. Mounting plate: 3 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
  • Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear: Rear panel fitted by M6 tork screw. Rear door instead of rear panel. RD version comes with rear door instead of rear panel.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette locking system with lock catcher made in AISI 316L and additional locks in top and bottom for enclosures with W=1000 mm. Swing handle SS 316L with half cylinder keyed EK 333.
  • Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing or two pieces for the rear door version.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is delivered attached on the outside of the enclosure packaging. For Enclosure with rear doors, two mounting plates mounted back to back with MPBB06.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: 240s pre-grained stainless steel (0,5 microns average).
  • Protection: Complies with IP 66 TYPE 4X, 12 IK 10. if are used with SPMSXXXXOG.
  • Approvals: CE, EAC, DNV-GL, GOST, Kema Keur, Lloyds shipping, cULus_listed.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. All packing material is recyclable.
Atributo del producto Valor
Height (H)2000mm
Width (W)800mm
Depth (D)600mm
Rear Panel IncludedNo
Rear Door IncludedYes
Mounting Plate IncludedYes
MaterialStainless Steel 316
FinishBrushed
Thickness (T)2mm
Door Thickness2mm
UPC783510499334
EAN8713574228214
Standard Packaging Quantity1
Packing Quantity1

ETIM for MCSS200810PRD20 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value800.00 mm
Feature nameHeight (EF000040)
Feature value2.00 mm
Feature nameDepth (EF000049)
Feature value1.00 mm
Feature nameMaterial (EF002169)
Feature valueStainless steel
Feature nameMaterial quality (EF001257)
Feature valueStainless steel 316
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature valueStainless steel
Feature nameWith mounting plate (EF000118)
Feature valueYes
Feature nameMounting plate depth-adjustable (EF006054)
Feature valueYes
Feature namePole fastening (EF009582)
Feature valueNo
Feature nameNumber of doors (EF000122)
Feature value2.00
Feature nameNumber of locks (EF000123)
Feature value2.00
Feature namePitched roof (EF009278)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameWith glazed door (EF001089)
Feature valueNo
Feature nameWith ventilation door (EF006279)
Feature valueNo
Feature nameWith rear door (EF007381)
Feature valueYes
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X

DATASHEET - PDF

Title
Size
Type
MCSS200810PRD20 MCSS200810PRD20 EN_MCSS200810PRD20.pdf
513 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
