TLCL87035
ELDON
1
Available Ship on today

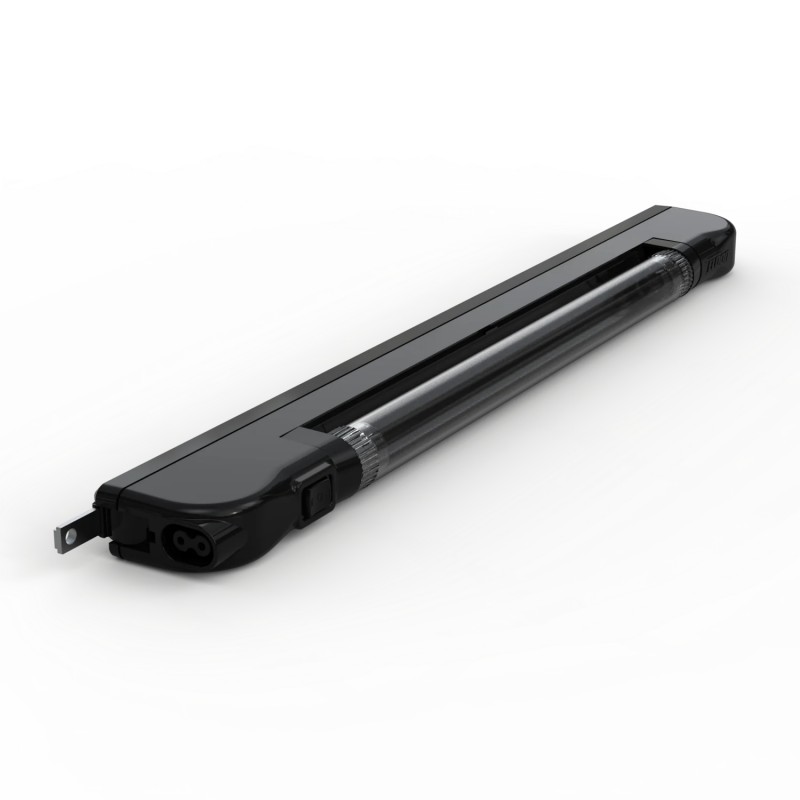

LED light 7,2W 240V grey TLCL87035
LED 7.2 W/240 V grey
This energy efficient LED enclosure light can be mounted in many different ways, as well as directly on 19" profiles, in any enclosure, and helps when maintenance is performed in the field.
Cabinet enclosures > Luminaire (switchgear cabinet)
General Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Description: | Lighting system with a compact design, suitable for all types of enclosures or racks. It has three possible fixing possibilities: magnetically, screw mounting with a variable distance between holes and/or snap-into 19” rack. This lamp has a very long service life (around 50000 h.) due to the use of LED technology. The body of the lighting system is made of PC-ABS. An integrated connector allows the activation of the lamp by a door switch by using the TLCS product without performing any additional wiring. The led-tube is made of PC and the colour of the light is white. |
Lamp type: | High Power LEDs. |
Luminosity: | 945 Lm. |
Power consumption: | 7.2 W. |
Operating temperature: | -20 ºC to +50 ºC. |
Dimensions: | 448 x 54.5 x 26 mm. |
Connections: | 2x0.75 mm² open end cable (1.5 m long), 2x0.75 mm² mini-connector for door switch use. |
Approvals: | CE, EAC. |
Delivery: | 1 light with fix mounted connection cable, integrated magnets and mounting screws. |
Feature: | Energy saving compact LED enclosure light, with multiple mounting methods. Available with different voltages and frequencies. |
Advantage: | Off the shelf enclosure light, can be installed into enclosures that are located within different countries. The light can be easily mounted onto the enclosure's surface by either magnets, screwed directly onto the enclosures or profiles hole pattern, or clicked into 19" profiles |
Benefit: | The enclosure light provides customers with a flexible solution as it can be mounted to any metallic surface or directly to 19" profiles. The light ensures both, operation and maintenance procedures can be performed safely, in the field. |
Comment: | Highly recommended to install the door switch, TLCS, to improve the enclosure's energy consumption. |
Title: | Size: | Type: |
---|---|---|
TLCL87035 TLCL87035 EN_TLCL87035.pdf | 117 Kbytes | |
TLCL87035 TLCL87035 LDSW01_Document-(PDF)1.pdf | 309 Kbytes | |
Download general catalog |
