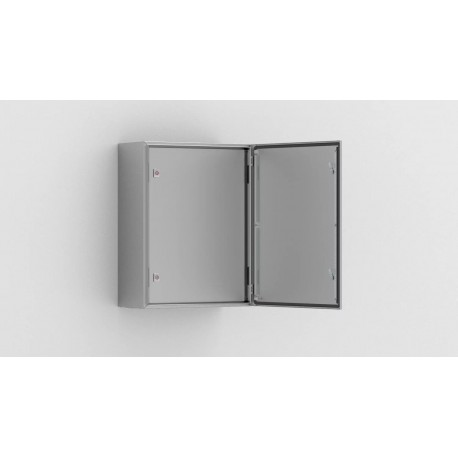

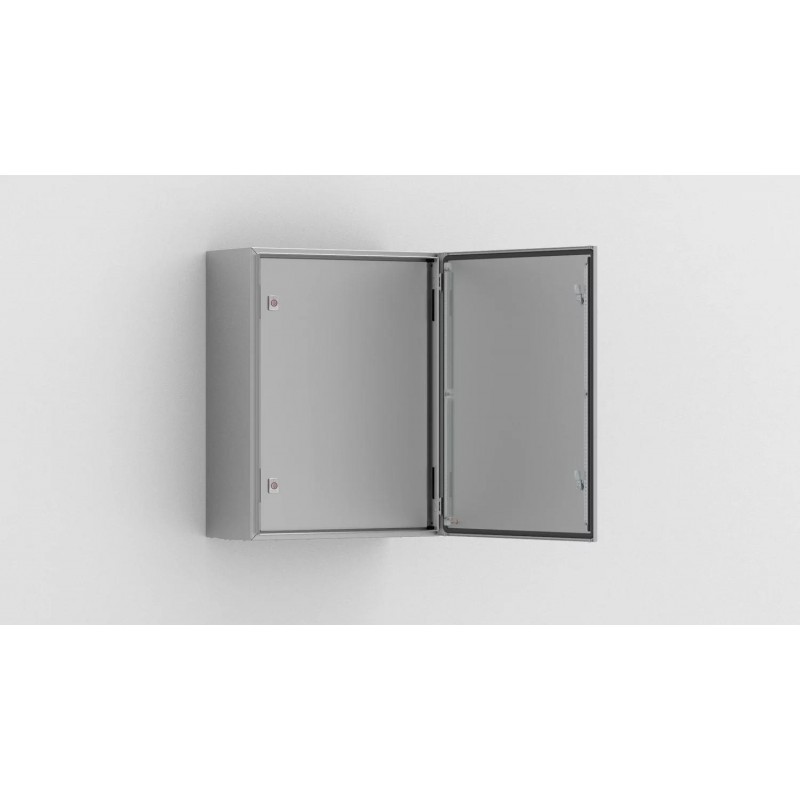

ADIS06040 ELDON Inner door, 600x400 ADIS06040
ADIS06040
ELDON
Inner door, 600x400 ADIS06040
Interior door, 600x400, 304 stainless steel lock double-warded 3 mm
Inner door, 600x400, Stainless 304, 3mm double bit lock
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Stainless steel enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features
- Description: For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening (Machining is required). Double-bit 3 mm lock, 800 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm, adjustable depth position with AMG accessory. Workable area: H-55, W-108. 19" version available on request.
- Material: Door 1.5 mm AISI 304 stainless steel and vertical top and bottom profiles 2 mm, AISI 304 stainless steel.
- Protection: IP 2XC.
- Finish: 400 pre-grained stainless steel.
- Pack quantity: Inner door, two vertical profiles, top and bottom profiles and mounting accessories.
| Atributo del producto | Valor |
|---|---|
| Height | 545mm |
| Width | 292mm |
| Depth | 15mm |
| Door Size | 545 x 292mm |
| Latch Quantity | 1 |
| Enclosure Material | Mild Steel |
| Product Family | Wall Mounted |
| Material | Stainless Steel 304 |
| Finish | Brushed |
| UPC | 783510117047 |
| EAN | 8713574174863 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Inner door |
| Version as glazed door (EF006966) | No |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 400.00 mm |
| Height (EF000040) | 600.00 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Stainless steel |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Stainless steel |
| Degree of protection (IP) (EF005474) | IP2X |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| ADIS06040 ADIS06040 EN_ADIS04030.pdf | 137 Kbytes |
|
