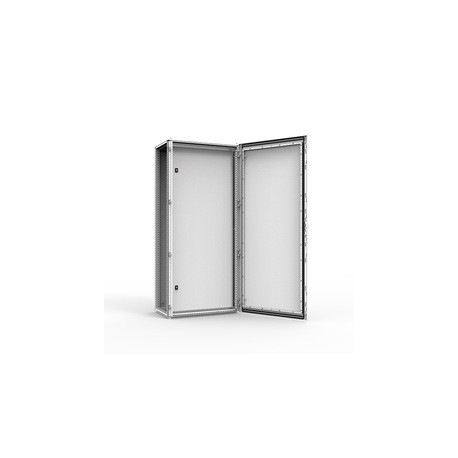

DI2006R5 ELDON Inner door, 2000x600 DI2006R5
DI2006R5
ELDON
Inner door, 2000x600 DI2006R5
Interior door, 2000x600, steel sheet, lock double-warded 3 mm
Inner Doors For Power Distribution, DI, 1953x565x53mm, Light Gray, Mild Steel
Cabinet enclosures > Divider panel (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features

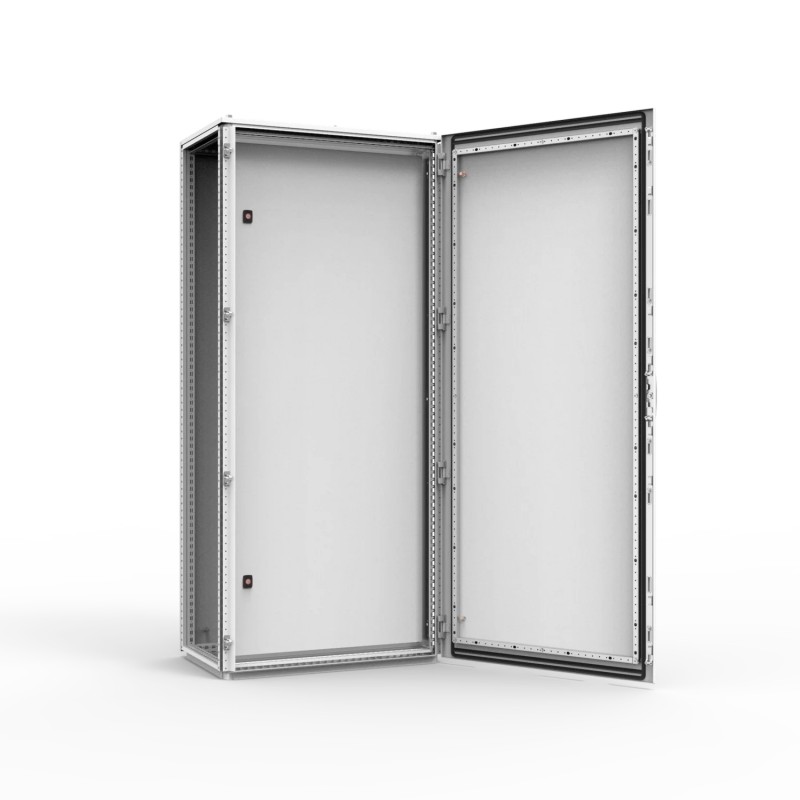

- Description: Inner door provides a hinged mounting surface for equipment behind a standard or glazed front door. A mounting space of 80 mm, is available between the doors when the inner door is in the most forward position. Can be adjusted in depth by steps of 25 mm. The mounting plate remains usable behind the inner door. The door is equipped with two double-bit 3 mm locks.
- Material: 1.5 mm mild steel.
- Finish: RAL 7035 structured powder coating.
- Pack quantity: 1 door with mounting accessories.
| Atributo del producto | Valor |
|---|---|
| Height | 1953mm |
| Width | 565mm |
| Depth | 53mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5mm |
| Package Quantity | 1 |
| Weight | 23.8kg |
| UPC | 783510465636 |
| EAN | 8713574123175 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 25.00 mm |
| Suitable for enclosure building width (EF000326) | 600.00 mm |
| Width (EF000008) | 565.00 mm |
| Height (EF000040) | 1953.00 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035.00 |
| With cable entry (EF000325) | No |
| With lock (EF006306) | Yes |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | No |
| For internal separation form 3b (EF009589) | No |
| For internal separation form 4a (EF009590) | No |
| For internal separation form 4b (EF009591) | No |
