ELDONGeneral AccessoriesECH50 ELDON Heater 50W ECH50

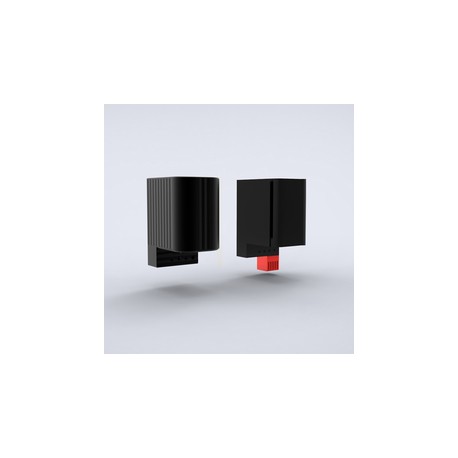

ELDON ECH50 ECH50 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ECH50 ELDON Heater 50W ECH50

Reference: ECH50

Manufacturer: ELDON

Description:

Heater 50W ECH50
Heater 50 W, 115-240 V
Heater 50W, 115-240V

Categories:

  • Cabinet enclosures > Heating (switchgear cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 64,15 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Double insulated vertical heater to prevent condensation. Mounting clip for 35 mm DIN rail (EN60715). Touch-safe heater, the temperatures of the housing are kept under 80 °C except upper protective grille. The heater with thermostat (ECHT) includes a plug-in thermostat therefore it does not require additional wiring, starting temperature of 5 °C, and switch-off temperature of 15 °C.
  • Heating element: PTC resistor, temperature limiting.
  • Material: Plastic according to UL94 V-0.
  • Operating temperature: -45 °C to +70 °C. The heating capacity is for ambient temperature 20 °C.
  • Connection: Pole terminal 2.5 mm², torque 0.8 Nm max.
  • Protection: IP 20, Class II (double insulated).
  • Approvals: CE, EAC.
  • Finish: Black.
  • Pack quantity: 1 piece.
Atributo del producto Valor
Height110mm
Width60mm
Depth90mm
MaterialPlastic
FinishTextured
ColorBlack
Heating Capacity50W
Voltage120 – 240V
L110mm
Weight0.4kg
UPC783510473860
EAN8713574121775
Standard Packaging Quantity1
Packing Quantity1

ETIM for ECH50 Cabinets and enclosures (EC000737)

Feature nameRated power (EF007051)
Feature value50.00 W
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value120.00 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value120.00 V
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameWith fan (EF002196)
Feature valueNo
Feature nameWith room temperature controller (EF001136)
Feature valueNo
Feature nameWidth (EF000008)
Feature value60.00 mm
Feature nameHeight (EF000040)
Feature value110.00 mm
Feature nameDepth (EF000049)
Feature value90.00 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
