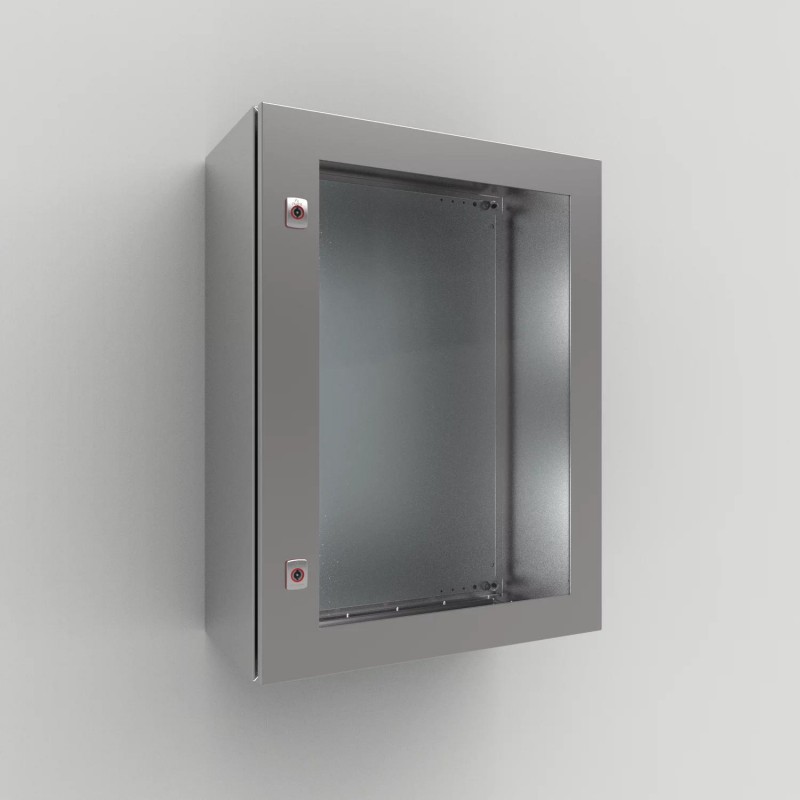

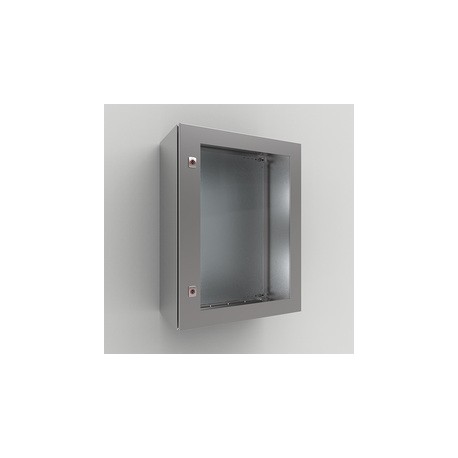

ADCS06080 ELDON Glazed door, 600x800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ADCS06080 ELDON Glazed door, 600x800

ADCS06080

ELDON

Available

Ship on today

Glazed door, 600x800

More details


Control Cabinets Switch Boxes Distribution Enclosures

Wall Mounting Enclosures - ELDON

Wall Mounting Enclosures Accessories - ELDON

* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Sometimes it's important that you see the inside.

Characteristics
Height600 mm
Width800 mm
Mounting Plate
Height
459 mm
Mounting Plate
Width
643 mm
No Locks2
Viewing Area
Height
459
Viewing Area
Width
643

Description:

To replace the standard door, provides a clear view of the components installed inside the enclosure. The lock(s) are interchangeable with all Eldon's standard lock(s).

Material:

1.5 mm AISI 304 stainless steel, 2 mm for enclosures with a height or width of 600 mm or greater and 4 mm clear safety glass.

Finish:

240s pre-grained stainless steel (average 0.5 micron).

Protection:

Complies with IP 55 | TYPE 12, 13.

Pack quantity:

1 door.

Datasheet - PDF

Title: Language: Size: Type:
Datasheet 1: ADCS06080 English 257 Kbytes Datasheet 1: ADCS06080
Complete catalogue 1: ADCS06080 English 4 Mbytes Datasheet 1: ADCS06080
