ELDONGeneral AccessoriesADA05040 ELDON Transparent door, 500x400 ADA05040
ELDON ADA05040 ADA05040 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

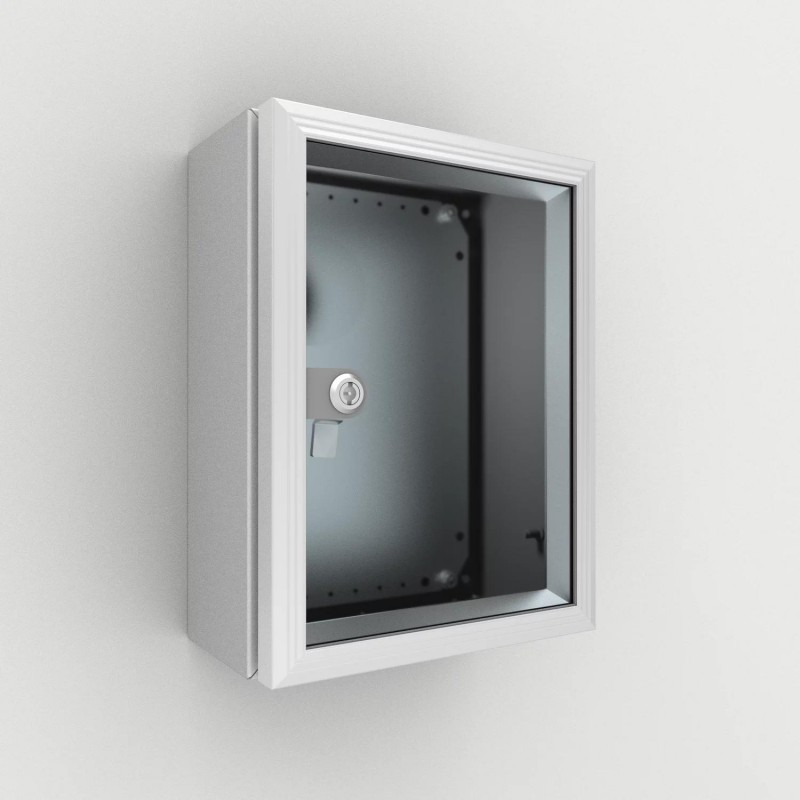

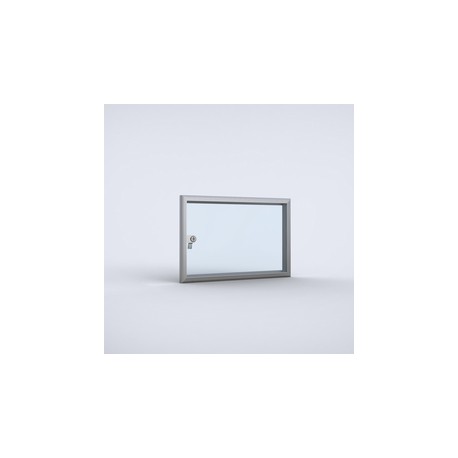

ADA05040 ELDON Transparent door, 500x400 ADA05040

Reference: ADA05040

Manufacturer: ELDON

Description:

Transparent door, 500x400 ADA05040
Transparent door, 500x400, aluminum, lockable, double warded of 3 mm, IP54
Transparent door, 500x400, Aluminium, 3mm double bit lock, IP54

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 221,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Viewing window when used in combination with mounting kit ADAMK. The double-bit 3 mm lock can be replaced by any optional insert or handle. It increases the enclosure depth by 10 mm.
  • Material: Aluminium and 3 mm acrylic glass.
  • Finish: Anodised aluminium.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 viewing window.
  • To replace the standard door
  • Can be used in combination with swing frame, modular chassis or inner door
  • The double-bit 3 mm lock can be replaced by any optional insert or handle
  • It increases the enclosures depth by 10 mm (ADA) or 35 mm (ADAB)
  • Can also be used as a viewing window when used in combination with mounting kit ADAMK/ADABMK
  • Includes mounting hardware
  • Number of locks: 1
Atributo del producto Valor
Height500mm
Width400mm
Depth30mm
Latch Quantity1
Window Size426 x 326mm
Number of Locking Devices1
Enclosure MaterialMild Steel
Product FamilyFree-Standing; Wall Mounted
MaterialAluminum
FinishMill
UPC783510114169
EAN8713574076655
Standard Packaging Quantity1
Packing Quantity1

ETIM for ADA05040 Cabinets and enclosures (EC000747)

Feature nameModel (EF000010)
Feature valueProtective door
Feature nameVersion as glazed door (EF006966)
Feature valuetrue
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valuefalse
Feature nameWidth (EF000008)
Feature value400.00 mm
Feature nameHeight (EF000040)
Feature value500.00 mm
Feature nameDepth (EF000049)
Feature valueNone mm
Feature nameEMC-version (EF001062)
Feature valuefalse
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature value
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameDegree of protection (NEMA) (EF011959)
Feature value

DATASHEET - PDF

Title
Size
Type
ADA05040 ADA05040 EN_ADA03030.pdf
76 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
