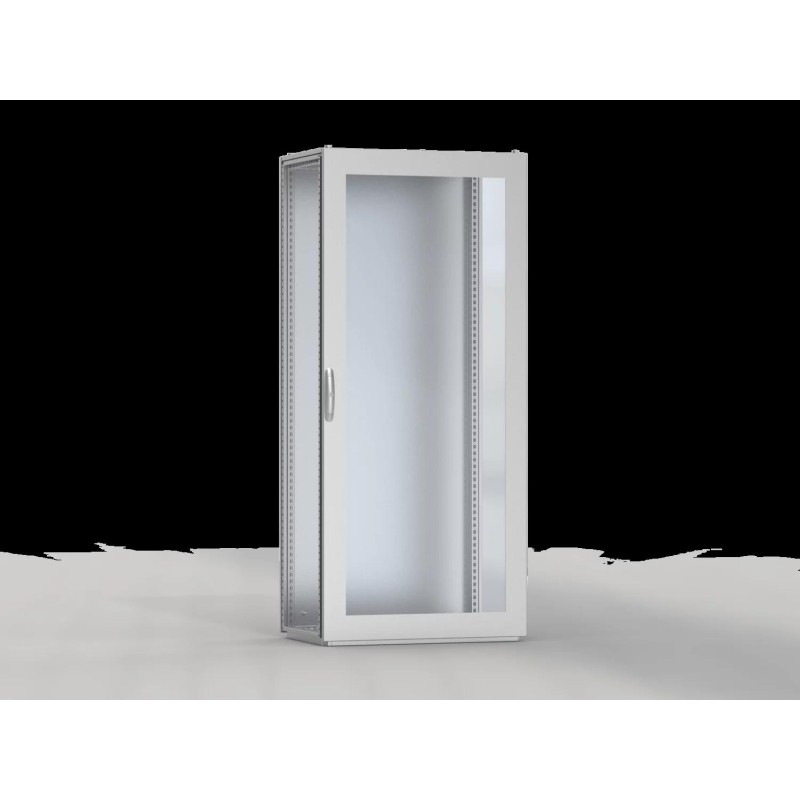

DNGS1806 ELDON Glazed door, 1800x600
DNGS1806
ELDON
Glazed door, 1800x600
Glass door, 1800x600, 304 stainless steel lock double-warded 3 mm
Glazed door, 1800x600, Stainless 304, 3mm double bit lock
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Stainless steel enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Best sellers
▲More info
▲Features
- Description: Transparent door fitted with clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking programme.
- Material: Frame: 2 mm AISI 304 stainless steel plate, AISI 316L (on request). Viewing area: 4 mm clear safety glass.
- Finish: 400 pre-grained stainless steel.
- Protection: IP 55, TYPE 12, 13, IK 07.
- Mounting requirements: Use hinge kit DNMKS01 if not for replacement of standard door.
- Pack quantity: 1 piece.
| Atributo del producto | Valor |
|---|---|
| Height | 1800mm |
| Width | 600mm |
| Depth | 17mm |
| Window Size | 1576 x 415mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Stainless Steel 304 |
| Finish | Brushed |
| Thickness | 2mm |
| UPC | 783510468057 |
| EAN | 8713574218697 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Protective door |
| Version as glazed door (EF006966) | Yes |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 600.00 mm |
| Height (EF000040) | 1.80 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Stainless steel |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Stainless steel |
| Degree of protection (IP) (EF005474) | IP55 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| DNGS1806 DNGS1806 EN_DNGS1408.pdf | 93 Kbytes |
|
| Download general catalog |
|
