ELDONPower and distributionDPCV0718R5 ELDON Front panel, 100x800 DPCV0718R5

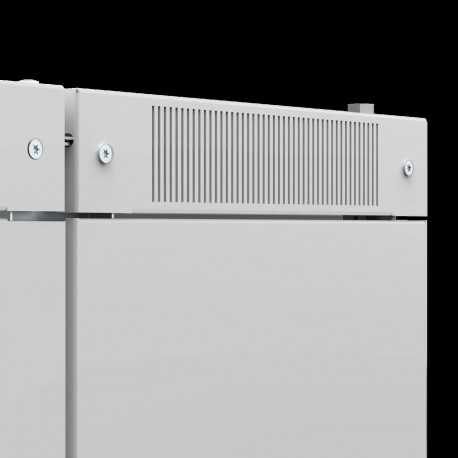

ELDON DPCV0718R5 DPCV0718R5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DPCV0718R5 ELDON Front panel, 100x800 DPCV0718R5

Reference: DPCV0718R5

Manufacturer: ELDON

Description:

Front panel, 100x800 DPCV0718R5
Front Panel, 100x800, sheet steel, top and bottom. Pack of 2 units.
Front panel, 100x800, Mild steel, top and bottom

Categories:

  • Cabinet enclosures > Top-/floor cover element (enclosure/switchgear cabinet)
  • ELDON > Power and distribution

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 104,00 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Required to cover the remaining space at the top and bottom. With ventilation slots for added heat dissipation in switchgear enclosures. Used in combination with horizontal dividers CDH/CDHK
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 20.
  • Mounting requirements: DPCV covers 200 mm in height of the enclosure. So for a 2000 mm high enclosure when DPCV is used, there is 1800 mm space left for partial doors/panels.
  • Pack quantity: 2 panels with mounting accessories.
Atributo del producto Valor
Height104mm
Width800mm
Depth17mm
Height 170mm
Height 2100mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.75mm
UPC783510471422
EAN8713574122635
Standard Packaging Quantity1
Packing Quantity1

ETIM for DPCV0718R5 Cabinets and enclosures (EC000744)

Feature nameSuitable for roof planking (EF009584)
Feature valuetrue
Feature nameSuitable for bottom planking (EF009585)
Feature valuetrue
Feature nameWidth (EF000008)
Feature value800.00 mm
Feature nameHeight (EF000040)
Feature value100.00 mm
Feature nameDepth (EF000049)
Feature valueNone mm
Feature nameSuitable for enclosure building width (EF000326)
Feature value800.00 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature valueNone mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coating
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7.04
Feature nameWith de-aeration (EF001161)
Feature valuefalse
Feature nameSuitable for outdoor set-up (EF005774)
Feature valuetrue
Feature nameWith cable entry (EF000325)
Feature value
