EKD20164PE
ELDON
1
Available Ship on today

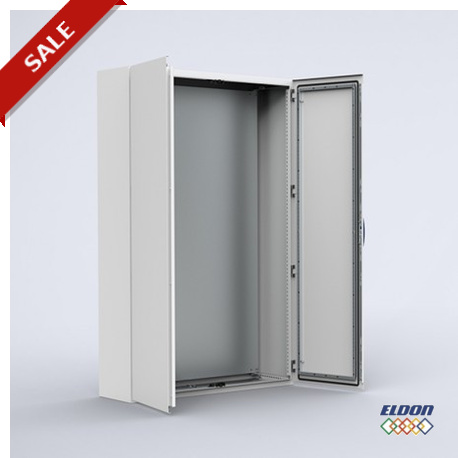

Floor standing, 2000x1600x400
Steel Floor Standing Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
As the double door version to EKS, the EKD offers the same improved design and strength as its smaller brother. With one piece body and welded rear panel ensures superior rigidity, and the front hole pattern guarantees the highest flexibility while maintaining IP 55 protection degree.
Characteristics | |
---|---|
Note | Without mounting plate |
Height | 2000 mm |
Width | 1600 mm |
Depth | 400 mm |
Weight | 146,9 Kg |
Material: | Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel. |
Body: | One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth. |
Door: | Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed. |
Lock: | External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle. |
Bottom plates: | Consists of two sets of two pieces or three (D>300) pieces. |
Mounting plate: | Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide mounting plates. |
Earthing: | Can be accomplished by using ECF (Earthing connections for frame). |
Finish: | RAL 7035 structured powder coating. |
Protection: | Complies with IP 55 TYPE 12, 13 IK 10. |
Delivery: | One piece body with fitted doors, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packaging material is recyclable. |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: EKD20164PE | 544 Kbytes | |
Complete catalogue 1: EKD20164PE | 9 Mbytes | |
Download general catalog |
