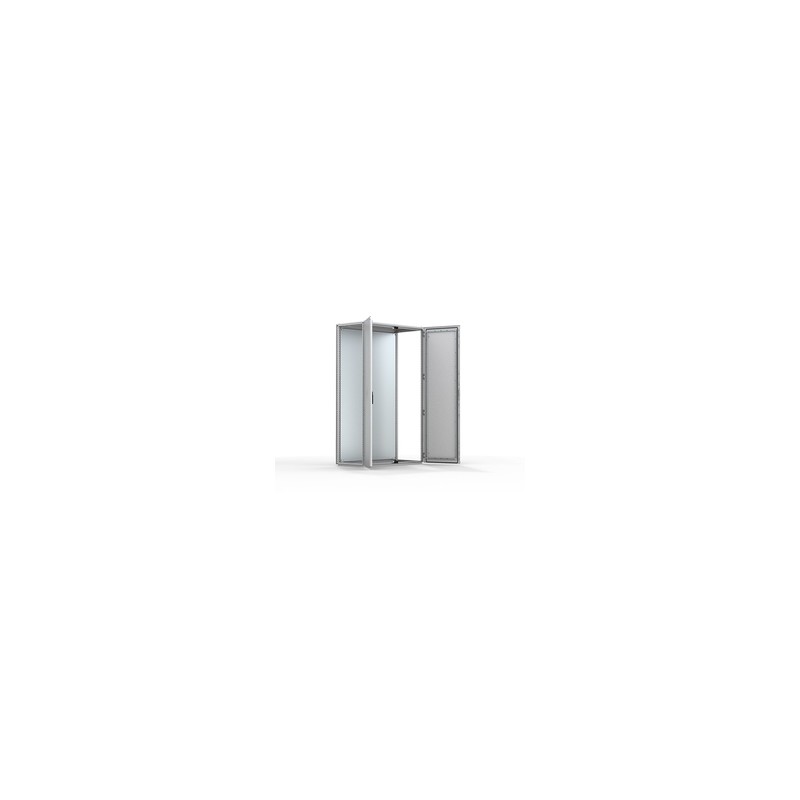

With a reliable design, the MCD range of mild steel double door floor standing enclosures combines strength and practicality in one. Infinite mounting possibilities and a complete range of accessories means you can rely on the MCD to get the job done.
Without mounting plate
Bottom Plate Opening Width
Bottom Plate Opening Depth
Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660. Including integrated external hole pattern.
Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 wide enclosures.
Supplied as an accessory.
Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Can be exchanged for standard inserts or Euro-cylinder and swing handle.
Consists of three or four (D>600) pieces.
Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Supplied outside of the enclosure packaging. Fitted inside for 1600 mm wide enclosures.
All panels are earthed through their fittings and equipped with a separate earthing stud.
RAL 7035 structured powder coating.
Complies with IP 55 | TYPE 12, 13 | IK 10.
Standard delivery ready for combined installation. For stand-alone installation add side panels. In 400 mm wide enclosures a mounting plate, bottom plates and door frame are not included.
Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. Packing material is recyclable.
