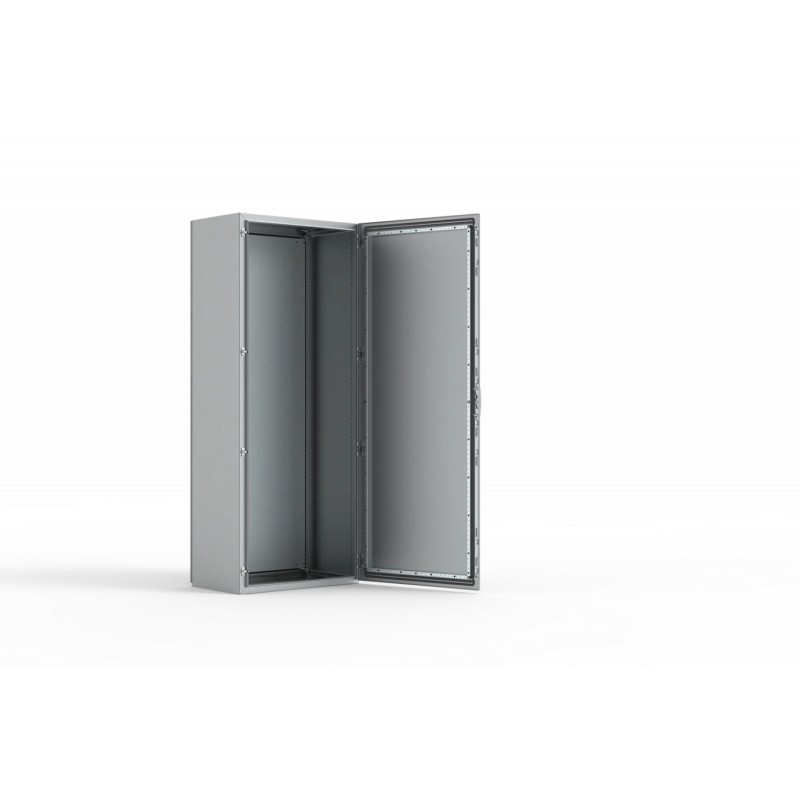

Floor standing, 1600x800x400
Control Cabinets Switch Boxes Distribution Enclosures
Floor Standing Enclosures - ELDON
Stainless steel, compact enclosure, single door. EKSS - ELDON
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Innovative improved design, the stainless steel compact range is designed with cleanliness and ingress protection in mind. The sturdy construction, with the 25 mm hole pattern, one piece body and removable rear panel, ensures superior rigidity and easy access. Fully compatible with floor standing range of accessories, the EKSS range is the ideal solution for food and chemical industries, outdoor applications and marine environments.
|Mounting Plate |
|Mounting Plate |
|Part No. AISI 304||EKSS16084|
|Part No. AISI 316L||EKSS16084-316*|
AISI 304 pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom plate: 1.5 mm. Mounting plate: 3 mm galvanized steel.
One piece enclosure body. Integrated depth profiles with hole pattern allowing mounting plate adjustable in depth.
Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs.
Fitted by M6 torx screws. Standard facilities for rear door mounting.
External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for the standard range of inserts, Euro-cylinder and swing handle.
One piece bottom plate with injected polyurethane gasket to ensure maximum sealing.
Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging.
Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.
240s pre-grained stainless steel (0.5 microns average).
Complies with IP 66 | TYPE 4X, 12, 13 | IK 10.
One piece body with fitted door, bottom plate and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.
