ELDONSteel Console SystemsMCM16068 ELDON Floor standing, 1600x600x800

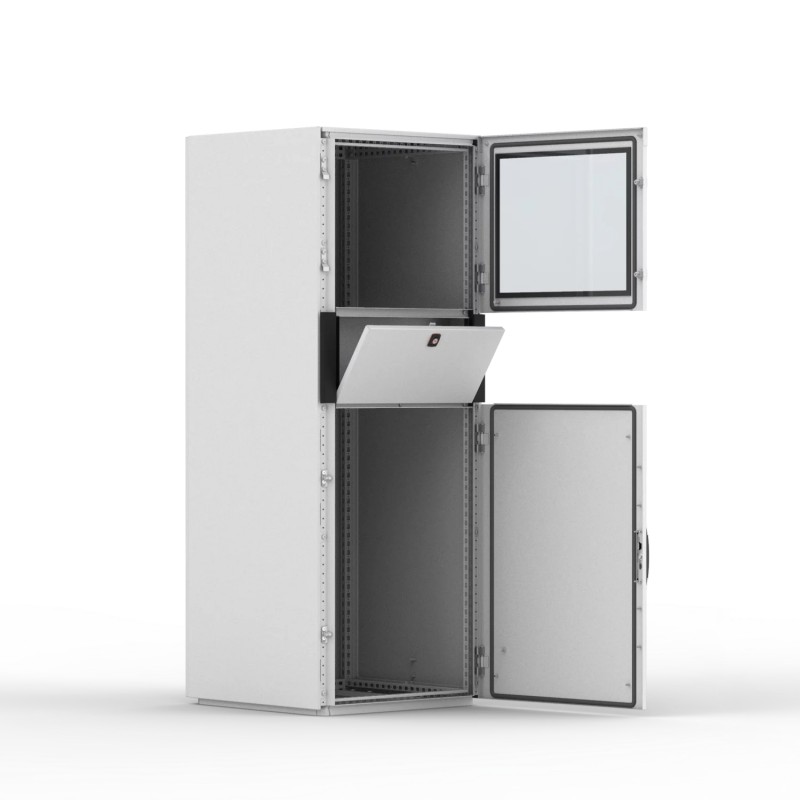

ELDON MCM16068 MCM16068 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

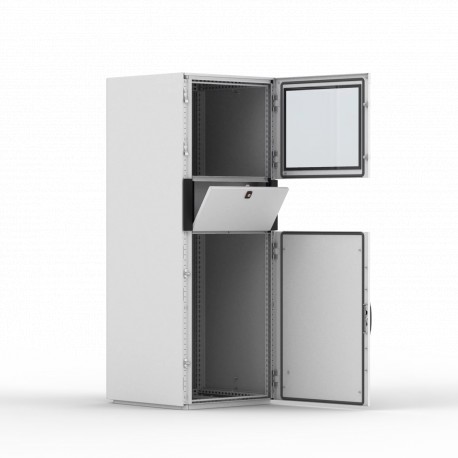

MCM16068 ELDON Floor standing, 1600x600x800

Reference: MCM16068

Manufacturer: ELDON

Description:

Floor standing, 1600x600x800
Self-supporting, 1600x600x800, compact, 1-door, no MP, mild steel, IP44
Floor standing, 1600x600x800, Compact enclosure, 1-door, no MP, mild steel, IP44

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Steel Console Systems

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.473,25 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: Frame: 1.5 mm steel plate. Roof and side panels: 1.35 mm steel plate. Doors: 2 mm steel plate. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • "Door: Mounted with two hinges per door. Top door with safety glass. Viewing area for 14""- 21""monitor. Two C21323 locks for the top door, and espagnolette two point locking system, with standard 3 mm double-bit lock for the bottom door."
  • Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame, with 25 mm hole pattern. Espagnolette four point locking system, with standard 3 mm double-bit lock.
  • Keyboard panel: Vertical opening keyboard panel. Sliding mouse pad, allowing left or right hand use. Max keyboard dimensions: 470 × 190 × 45 mm. C21323 lock.
  • Bottom plates: Consists of three or four (D> 600) pieces.
  • Finish: Two tone finish. Doors, side panels, roof and frame in RAL 7035 structured powder coating. Keyboard side panels and monitor door top cover in RAL 7015 structured powder coating. Other colour schemes optional.
  • Features: Special design of roof and side panels for theft security. All panels are only accessible when the doors are unlocked. Your own company name can be inserted in the top cover (option).
  • Protection: IP 44, IK 10. With keyboard tray opened, reduces to IP 30.
  • Mounting requirements: Equipment shelves need to be added.
  • Delivery: Frame with fitted rear door, side panels, roof panel, monitor door, keyboard panel, bottom plates and monitor shelf, with clamps to fix the monitor. Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
Atributo del producto Valor
Height (H)1600mm
Width (W)600mm
Depth (D)800mm
Weight112.5kg
MaterialMild Steel
FinishPowder Coated
ColorLight Grey
Color CodeRAL 7035
Door Thickness2mm
UPC783510493813
EAN8713574093300
Standard Packaging Quantity1
Packing Quantity1

ETIM for MCM16068 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value600.00 mm
Feature nameHeight (EF000040)
Feature value1.60 mm
Feature nameDepth (EF000049)
Feature value800.00 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7.03
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature namePole fastening (EF009582)
Feature valueNo
Feature nameNumber of doors (EF000122)
Feature value2.00
Feature nameNumber of locks (EF000123)
Feature value3.00
Feature namePitched roof (EF009278)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameWith glazed door (EF001089)
Feature valueYes
Feature nameWith ventilation door (EF006279)
Feature valueNo
Feature nameWith rear door (EF007381)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
