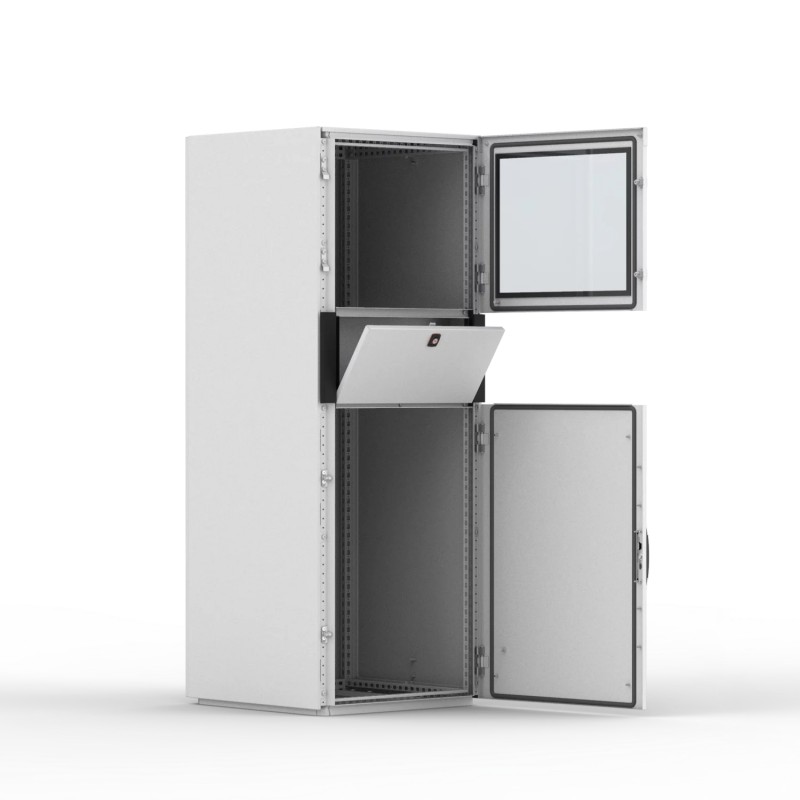

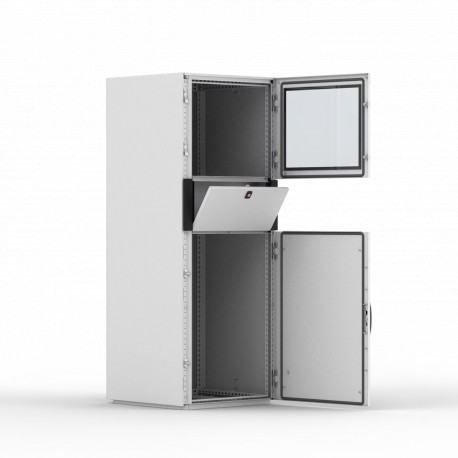

MCM16066 ELDON Floor standing, 1600x600x600
MCM16066
ELDON
Floor standing, 1600x600x600
Self-supporting, 1600x600x600, compact, 1-door, no MP, mild steel, IP44
Floor standing, 1600x600x600, Compact enclosure, 1-door, no MP, mild steel, IP44
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Steel Console Systems
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Often bought together
▲Best sellers
▲More info
▲Features
- Material: Frame: 1.5 mm steel plate. Roof and side panels: 1.35 mm steel plate. Doors: 2 mm steel plate. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- "Door: Mounted with two hinges per door. Top door with safety glass. Viewing area for 14""- 21""monitor. Two C21323 locks for the top door, and espagnolette two point locking system, with standard 3 mm double-bit lock for the bottom door."
- Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame, with 25 mm hole pattern. Espagnolette four point locking system, with standard 3 mm double-bit lock.
- Keyboard panel: Vertical opening keyboard panel. Sliding mouse pad, allowing left or right hand use. Max keyboard dimensions: 470 × 190 × 45 mm. C21323 lock.
- Bottom plates: Consists of three or four (D> 600) pieces.
- Finish: Two tone finish. Doors, side panels, roof and frame in RAL 7035 structured powder coating. Keyboard side panels and monitor door top cover in RAL 7015 structured powder coating. Other colour schemes optional.
- Features: Special design of roof and side panels for theft security. All panels are only accessible when the doors are unlocked. Your own company name can be inserted in the top cover (option).
- Protection: IP 44, IK 10. With keyboard tray opened, reduces to IP 30.
- Mounting requirements: Equipment shelves need to be added.
- Delivery: Frame with fitted rear door, side panels, roof panel, monitor door, keyboard panel, bottom plates and monitor shelf, with clamps to fix the monitor. Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 1600mm |
| Width (W) | 600mm |
| Depth (D) | 600mm |
| Weight | 111kg |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Grey |
| Color Code | RAL 7035 |
| Door Thickness | 2mm |
| UPC | 783510493769 |
| EAN | 8713574093294 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 600.00 mm |
| Height (EF000040) | 1.60 mm |
| Depth (EF000049) | 600.00 mm |
| Material (EF002169) | Steel |
| Material quality (EF001257) | |
| Surface finishing (EF006569) | Powder coating |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7.03 |
| Freestanding (EF020363) | |
| Floor standing wall model (EF015208) | |
| Suitable for wall mounting (EF000664) | |
| Corner model (EF020814) | |
| Intermediate mounting (EF022994) | |
| Couplable (EF001229) | |
| With mounting plate (EF000118) | false |
| Mounting plate depth-adjustable (EF006054) | |
| Suitable for wall built-in (EF007536) | |
| Pole fastening (EF009582) | false |
| Number of doors (EF000122) | 2.00 |
| Number of locks (EF000123) | 3.00 |
| Suitable for metrical mounting (EF005823) | |
| Pitched roof (EF009278) | false |
| EMC-version (EF001062) | false |
| With glazed door (EF001089) | true |
| With ventilation door (EF006279) | false |
| With rear door (EF007381) | false |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP55 |
| Degree of protection (NEMA) (EF011959) | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
