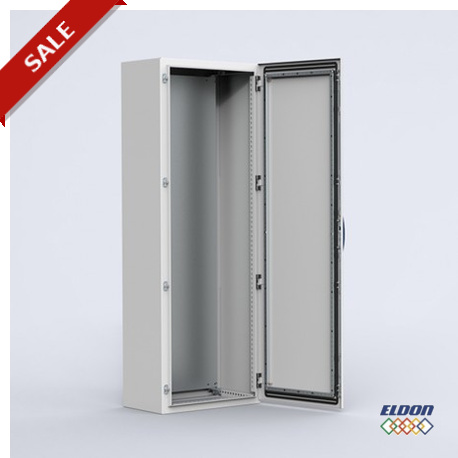

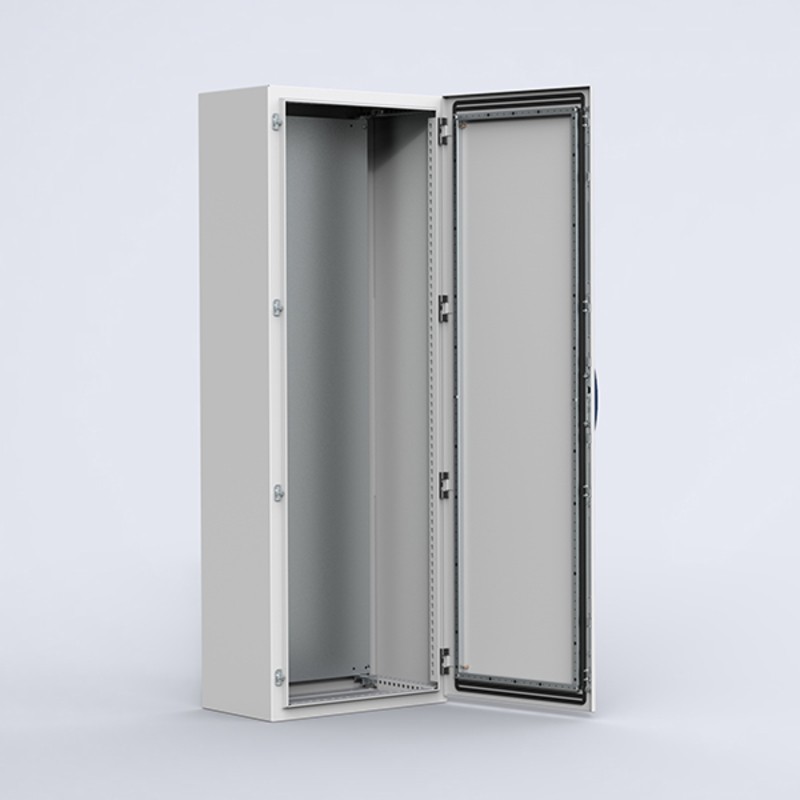

Innovative improved design, the mild steel single door floor standing enclosure offers any user maximum effectivness. With one piece body and welded rear panel ensures superior rigidity. The front hole pattern guarantees the highest flexibility while maintaining IP 66 protection degree.
Without mounting plate
Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.
Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs.
Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Can be exchanged for standard inserts or Euro-cylinder and swing handle.
Consists of two pieces or three (D>300) pieces.
Double folded and slides into position. Adjustable in depth by steps of 25 mm. In the enclosure's delivery, mounting plate is attached on the outside of the enclosure packaging.
Can be accomplished by using ECF (Earthing connections for frame).
RAL 7035 structured powder coating.
Complies with IP 66 | TYPE 4, 12, 13 | IK 10.
One piece body with fitted door, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packing material is recyclable.
