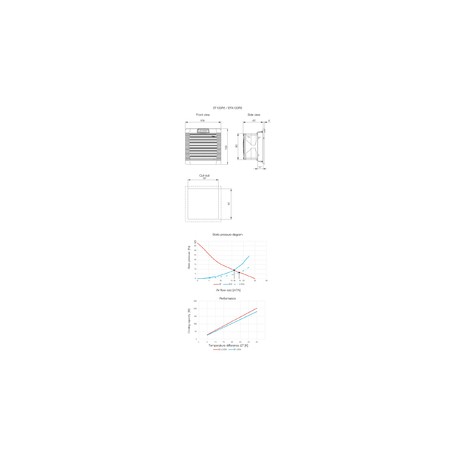

EF100R5 ELDON Filter Fan Air flow 25 m3/h EF100R5
EF100R5
ELDON
Filter Fan Air flow 25 m3/h EF100R5
Fan with filter 19 m3/h, 230 V, 50/60 Hz, IP54
Filter Fan Air flow 19 m3/h, 230V, 50/60HZ, IP54
Cabinet enclosures > Ventilator (switchgear cabinet)
General Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features
- Description: Filter fan for forced ventilation. nVent HOFFMAN filter fans save time on installation as they are installed with a click-in system without screws. The hinged front cover can be easily opened for quick and easy filter replacement. The airflow direction and the connection position can easily be changed.
- Material: Front cover manufactured from injection-moulded thermoplastic, self-extinguishing, UL94V0.
- Temperature range: -40 °C to +55 °C.
- Protection: IP 54, TYPE 12.
- Finish: RAL 7035.
- Pack quantity: One fan with filter.
- The filter fan is reliable due to its high quality motor, as well as being easy to install
- Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation
- The click-in feature reduces the customer's labour cost due to the ease of installation
- The filter fan should be installed together with at least one exhaust filter, EFA
- Bearing Type: Sleeve
| Atributo del producto | Valor |
|---|---|
| Aiflow Volume, Without Filter | 19/24m³/h |
| Airflow Volume, With Filter | 12/14m³/h |
| Airflow | 19m³/h |
| Height | 109mm |
| Width | 109mm |
| Depth | 63mm |
| Cutout Size | 92 x 92mm |
| Voltage AC | 230V |
| Protection Rating | IP54; NEMA Type 12 |
| Material | Thermoplastic |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Nominal Current | 0.07/0.06A |
| Connection Type | 310 mm Cable |
| Noise Level | 33dB(A) |
| Weight | 0.55kg |
| Net Weight | 0.54kg |
| UPC | 783510474461 |
| EAN | 8713574132900 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Number of fans (EF000928) | |
| Operating voltage AC 50 Hz (EF008206) | None V |
| Operating voltage AC 60 Hz (EF008207) | None V |
| Operating voltage DC (EF008208) | None V |
| Voltage type (EF000187) | |
| Suitable for wall built-in (EF007536) | |
| Built as slide-in ventilator (EF007126) | |
| Air circulator (EF007516) | |
| Roof ventilator (EF007099) | |
| With filter (EF006013) | |
| With protective cover (EF005500) | |
| Volume flow, freeblowing (EF007173) | None m³/h |
| Rated power (EF007051) | None W |
| EMC-version (EF001062) | |
| Noise emission (EF007829) | None dB(A) |
| Degree of protection (IP) (EF005474) | |
| Degree of protection (NEMA) (EF011959) | |
| Mounting method (EF000003) | |
| Suitable for 19 inch rack mounting (EF000337) | |
| Colour (EF000007) | |
| RAL-number (EF000116) | |
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Depth (EF000049) | None mm |
