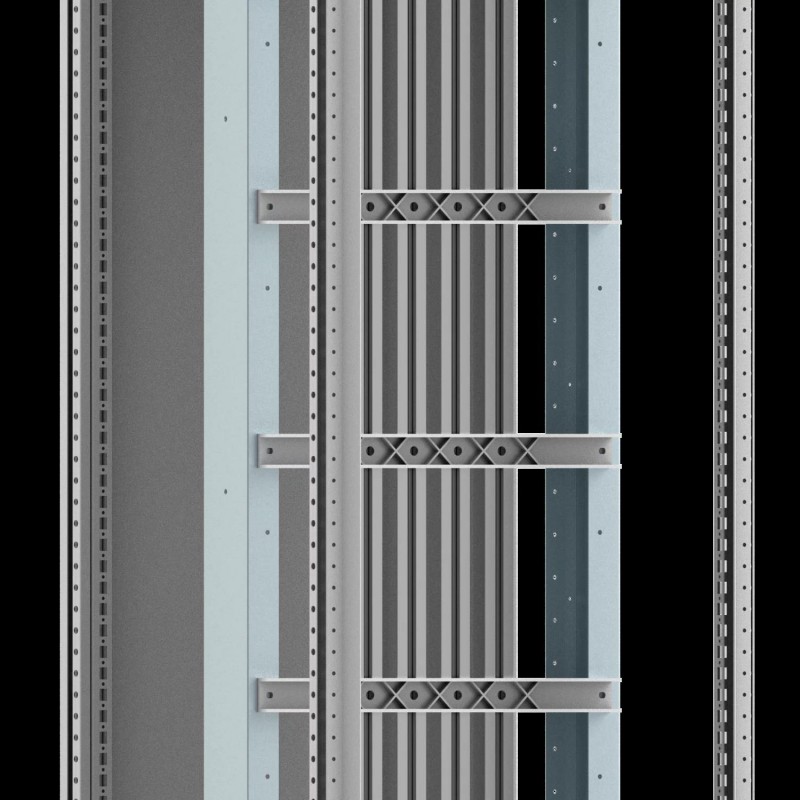

MSVH2000 ELDON Rear busbar support, 2000 MSVH2000
MSVH2000
ELDON
Rear busbar support, 2000 MSVH2000
Support bars later, 2000, to sections plug-in, up to 1600A
Rear busbar support, 2000, for plug-in sections
Energy distribution systems > Accessories/spare parts for busbars
General Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: Busbar supports up to 1600A to be mounted vertically behind the plug-in compartments. Rated short-time withstand current up to 35KA with rear supports and up to 50KA with rear and front supports. Mounts to the vertical profiles included in the rear cover plate for plugin sections MSSB.
- Material: Polycarbonate reinforced with 10% of glass material.
- Delivery: 4 busbar support with mounting material.
- The supports should be mounted onto the plug-in system vertical profiles (MSSB)
- Plug-in busbars (MSBS), must be used in conjunction with these supports
- Busbar supports up to 1600A to be mounted vertically behind the plug-in compartments
- Rated short-time withstand current up to 35KA with rear supports and up to 50KA with rear and front supports
- Mounts to the vertical profiles included in the rear cover plate for plugin sections MSSB
- Delivery: 4 busbar support with mounting material
| Atributo del producto | Valor |
|---|---|
| Height | 40mm |
| Width | 482mm |
| Depth | 45mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Polycarbonate |
| Finish | Smooth |
| Color | Gray |
| Thickness | 3.5mm |
| Max Current | 1600A |
| Short Term Withstand Current (Icw) 1s | 35kA |
| Package Quantity | 7 |
| UPC | 783510523589 |
| EAN | 8713574181311 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | |
| Accessory (EF013236) | |
| Spare part (EF013237) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MSVH2000 MSVH2000 EN_MSVH1800.pdf | 189 Kbytes |
|
