EL900DS-US
ELDON
1

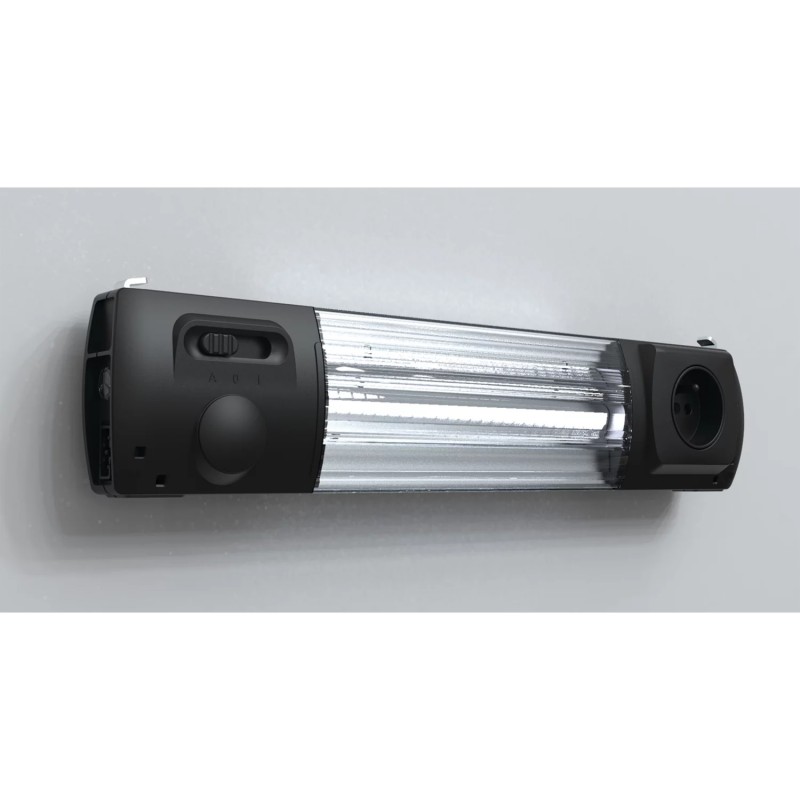

Lumin. 900lm TPS+takes corr., 120-230V 50/60Hz
An LED light specially designed for nVent HOFFMAN enclosures. Equiped with a socket.Tool-free assembly reduces the assembly time. Simple through wiring based on a plug and play system. Suitable for global use with a voltage range of 100-240V.
General Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Description: | LED enclosure light specially designed for nVent HOFFMAN enclosures. Fast and tool-free assembly thanks to a latching hook system designed to fit the 25mm hole pattern on nVent HOFFMAN enclosures. May be fitted horizontally or vertically. |
Lamp type: | LED. |
Luminosity: | 900 lm. |
Light colour: | 4000 K (neutral white). |
Power consumption: | 9 W |
Operating voltage: | 100 V - 240 V ~, 50/60 Hz |
Connection: | Infeed, 3-pole. Through wiring, 3-pole. |
Operating temperature: | -20 °C … +55 °C |
Protection: | Protection class II |
Dimensions: | 364 × 76 × 48 |
Feature: | LED enclosure light with integrated socket, multi voltage. Available with different sockets |
Advantage: | Off the shelf LED light designed for nVent HOFFMAN enclosures. The light can be easily mounted on nVent HOFFMAN enclosures. Can be mounted both vertically and horizontally. |
Benefit: | Fast, tool-free assembly thanks to the integrated quick fixation function. |
Comment: | It is highly recommended to install a door switch to reduce the energy consumption. An option with a screw and magnetic attachment. |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE NVENT EN.pdf | 76 Mbytes | |
EL900DS-US EL900DS-US EN_EL900DS.pdf | 131 Kbytes | |
Download general catalog |
