EL1200DS-BF ELDON Lumin. 1200lm TPS+takes corr., 120-230V 50/60Hz And
EL1200DS-BF
ELDON
Lumin. 1200lm TPS+takes corr., 120-230V 50/60Hz And

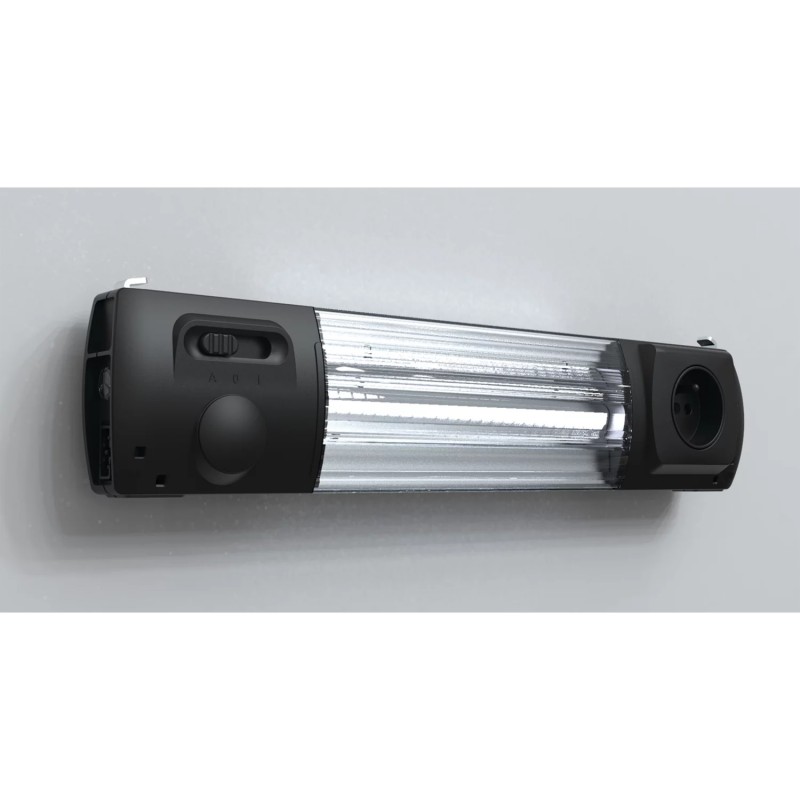

EL LED encl. Light With Socket E, 1200lm 100-240V, 76x364x48mm, Black, Plastic
Light 1200lm TPS + Socket
Cabinet enclosures > Luminaire (switchgear cabinet)
General Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: LED enclosure light specially designed for nVent HOFFMAN enclosures. Fast and tool-free assembly thanks to a latching hook system designed to fit the 25mm hole pattern on nVent HOFFMAN enclosures. May be fitted horizontally or vertically.
- Please be advised that when using the clamp mechanism to mount these lights, they cannot be installed on the top rail of ProLine and ProLine G2 cabinet frames.
| Atributo del producto | Valor |
|---|---|
| Height | 76mm |
| Width | 364mm |
| Depth | 48mm |
| Material | Plastic |
| Finish | Smooth |
| Color | Black |
| Socket Type | Type E |
| Lamp Type | LED |
| Light Output | 1200lm |
| Color Temperature | 4000K |
| Light Color | Neutral White |
| Power | 12W |
| Nominal Voltage | 230V |
| Input Voltage AC | 100 – 240V |
| Hertz | 50/60Hz |
| Connection Type | 3 Pole; Infeed; Trough-Wiring |
| Operating Temperature | −20 to 55°C |
| Weight | 0.7kg |
| Motion Sensor Included | No |
| Socket Included | Yes |
| UPC | 783510478841 |
| EAN | 8713574231382 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | None V |
| Voltage type (EF000187) | |
| Lamp power (EF000035) | None W |
| With socket outlet (EF000289) | |
| Type of electric connection (EF003961) | |
| Lamp type (EF002423) | |
| Length (EF001438) | None mm |
| With light sensor (EF001203) | |
| Material (EF002169) | |
| With on/off switch (EF000488) | |
| Degree of protection (IP) (EF005474) | |
| Degree of protection (NEMA) (EF011959) | |
| Mounting method (EF000003) | |
| Suitable for 19 inch mounting (EF003555) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| EL1200DS-BF EL1200DS-BF EN_EL1200DS.pdf | 130 Kbytes |
|
