ELDONGeneral AccessoriesECB083005 ELDON Cu grounding bar 30x05, Copper grounding bar pack of 2

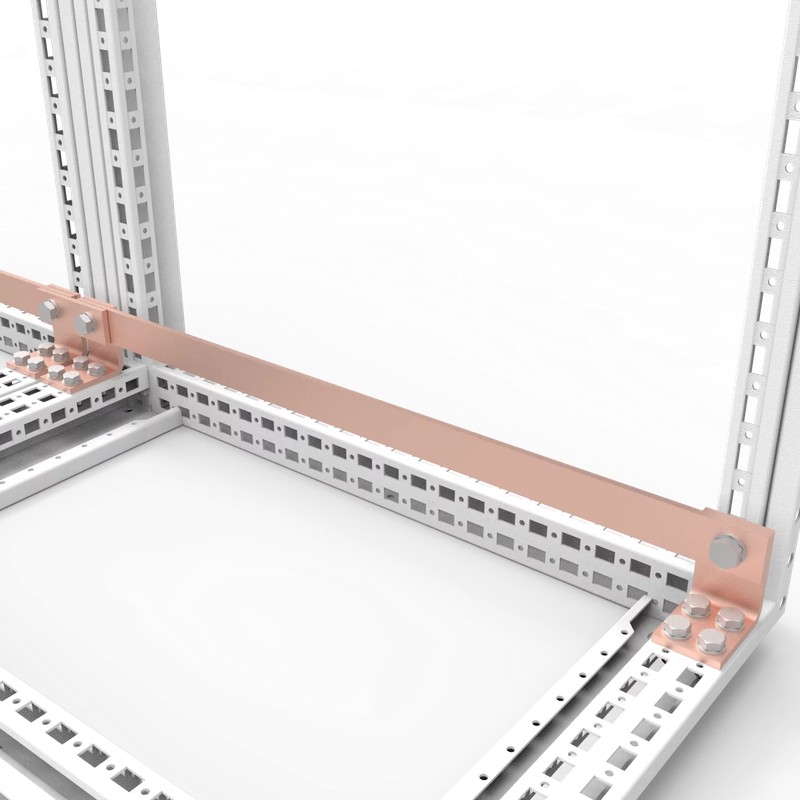

ELDON ECB083005 ECB083005 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ECB083005 ELDON Cu grounding bar 30x05, Copper grounding bar pack of 2

Reference: ECB083005

Manufacturer: ELDON

Description:

Cu grounding bar 30x05, Copper grounding bar pack of 2
Bar Cu ground 30x05, copper Bar for grounding. Pack of 2 units.
Copper bars for earthing, 30x5x800mm
Earthing copper bar 30x05, Copper bars for earthing

Categories:

  • Energy distribution systems > Earthing rail for distribution board
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 113,74 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Prefabrictaed busbars designed for nVent HOFFMAN enclosures.
  • Material: Copper.
  • Delivery: 2 pcs. of copper bar.
Atributo del producto Valor
Height30mm
Width5mm
Depth800mm
Product FamilyIEC General Accessories
MaterialCopper
FinishMill
UPC783510473372
EAN8713574231306
Standard Packaging Quantity1
Packing Quantity2

ETIM for ECB083005 Power distribution systems (EC000329)

Feature nameNumber of connections (EF000126)
Feature value32.00
Feature nameRated current (EF000227)
Feature value500.00 A
Feature nameMaterial (EF002169)
Feature valueCopper
Feature nameSurface of the contact rail (EF004227)
Feature valueUntreated
Feature nameRail length (EF010935)
Feature valueNone mm
Feature nameRail width (EF003704)
Feature valueNone mm
Feature nameBusbar thickness (EF002640)
Feature valueNone mm
Feature nameClearance from back plate (EF011973)
Feature value20.00 mm
Feature nameMounting method (EF000003)
Feature valueDirect mounting
Feature nameHorizontal mounting (EF006051)
Feature value
Feature nameVertical mounting (EF024092)
Feature value
Feature nameInsulated mounting (EF001588)
Feature valuefalse
Feature nameMax. tightening torque (EF011415)
Feature valueNone Nm
Feature nameConnection size, connection facility (EF020294)
Feature value

DATASHEET - PDF

Title
Size
Type
ECB083005 ECB083005 EN_ECB043005.pdf
233 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
