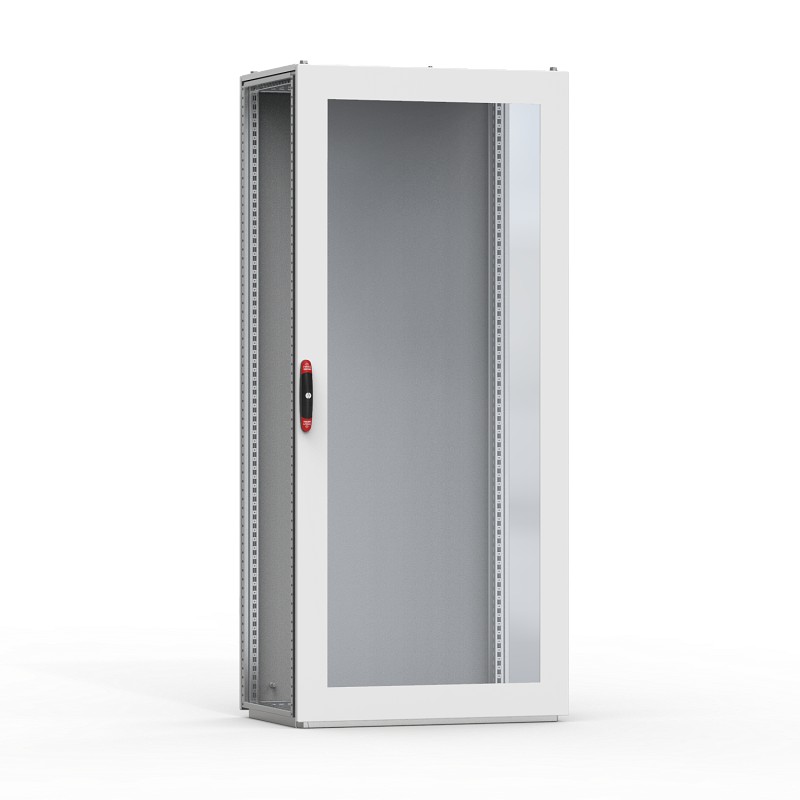

DNGE2008R5 ELDON Glazed door, 2000x800 DNGE2008R5
DNGE2008R5
ELDON
Glazed door, 2000x800 DNGE2008R5
Glass door, 2000x800, galvanized, lock double warded of 3 mm, EMC
Glazed door, 2000x800, Zinc plated, 3mm double bit lock, EMC
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: Standard door fitted with clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking program. Sealing is maintained by a conductive polyurethane EMC gasket. To ensure the EMI effectiveness a mesh wire is placed behind the glass window with a clearance percentage of 61%. Use hinge kit DNMK if not for replacement of standard door.
- Material: Frame: 2 mm zinc plated steel. Viewing area: 3 mm clear safety glass.
- Finish: RAL 7035 structure powder coating on the outside only.
- Protection: IP 54, TYPE 12, IK 07.
- Mounting requirements: If no door was fitted previously use hinge kit DNMK01.
- Pack quantity: 1 piece.
- Coating on the outside only
- If no door was fitted previously use hinge kit DNMK01
- Transparent EMC door to replace the standard plain door on EMC floor standing enclosures
- Clear view of the equipment installed inside the enclosure with the door closed
- The user can check the status and information of the equipment inside the enclosure maintaining the ingress protection
- Viewing area height (mm): 1776; viewing area width (mm): 615
| Atributo del producto | Valor |
|---|---|
| Height | 2000 mm |
| Width | 800 mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Window Size | 1776 x 615 mm |
| Enclosure Material | Galvanized Steel |
| Product Family | Free-Standing |
| UPC | 783510467920 |
| EAN | 8713574219908 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Protective door |
| Version as glazed door (EF006966) | Yes |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 800.00 mm |
| Height (EF000040) | 2.00 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| Degree of protection (IP) (EF005474) | IP55 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| DNGE2008R5 DNGE2008R5 EN_DNGE2008R5.pdf | 100 Kbytes |
|
