ELDONGeneral AccessoriesPP1532H ELDON Din rail with holes, 2000 PP1532H
ELDON PP1532H PP1532H - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

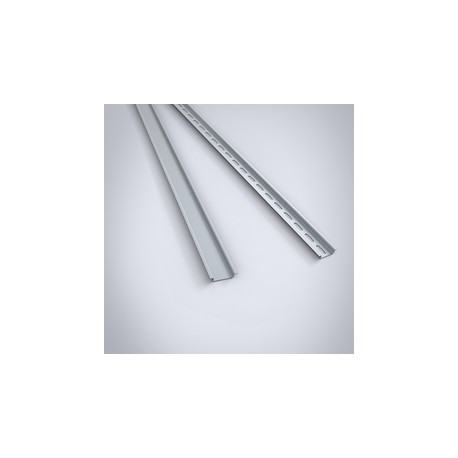

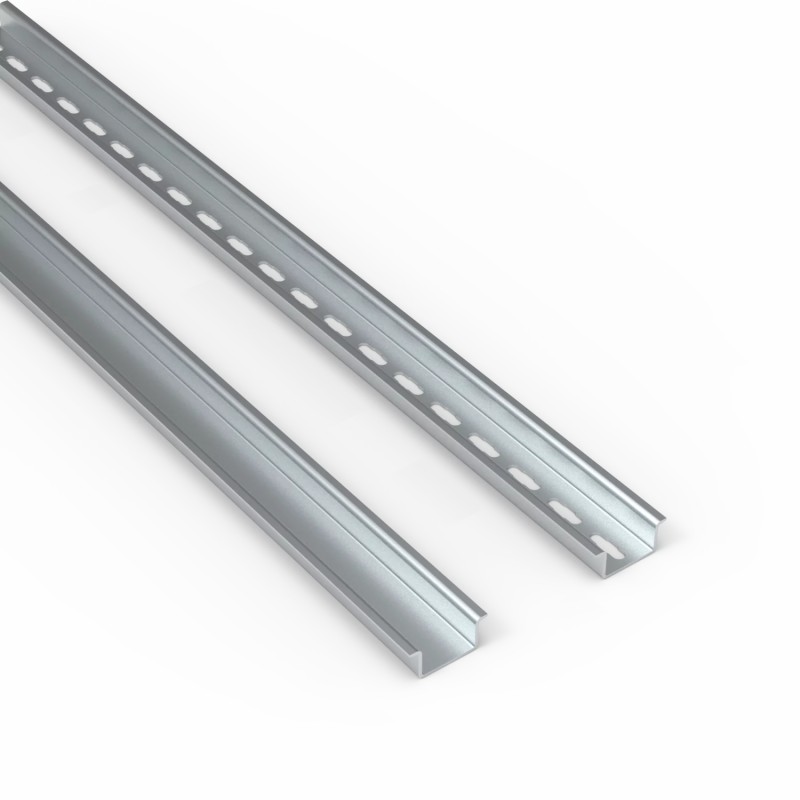

PP1532H ELDON Din rail with holes, 2000 PP1532H

Reference: PP1532H

Manufacturer: ELDON

Description:

Din rail with holes, 2000 PP1532H
DIN rail with holes 2000. 30 mtr.
Din rail with holes, 2000

Categories:

  • Energy distribution systems > Mounting rail
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 5,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: According to EN 60715.
  • Material: Galvanized steel.
  • Pack quantity: 15 × 2 m.
  • The DIN rails are supplied in lengths of 2 metres allowing customers to cut them to size in order to install modular components
  • Modular components can be easily installed in a fast way onto the enclosure's mounting plate reducing the required mounting time
  • With holes: PP0515H, PP0735H, PP1532H, PP1535H; Without holes: PP0735, PP1532, PP1535
  • Omega type: PP0515H, PP0735, PP0735H, PP1535, PP1535H; G type: PP1532, PP1532H
  • Hole pattern 18 x 5.2 mm: PP0515H, PP0735H, PP1532H, PP1535H
Atributo del producto Valor
Height15mm
Width32mm
Holes IncludedYes
Hole TypeG
Hole Quantity18
Hole Diameter5.2mm min
Product FamilyIEC General Accessories
MaterialSteel
FinishGalvanized
UPC783510526276
EAN8713574013292
Standard Packaging Quantity1
Packing Quantity1

ETIM for PP1532H Power distribution systems (EC001285)

Feature nameModel (EF000010)
Feature valueDIN rail (top hat rail) 35/15 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature namePunch shape (EF001457)
Feature valueRound hole
Feature nameMaterial thickness (EF000386)
Feature value1.50 mm
Feature nameLength (EF001438)
Feature value2.00 mm
Feature nameHeight (EF000040)
Feature value2.00 mm
