ELDONSteel Console SystemsMPC102R5 ELDON Desk console, 250x1000x985

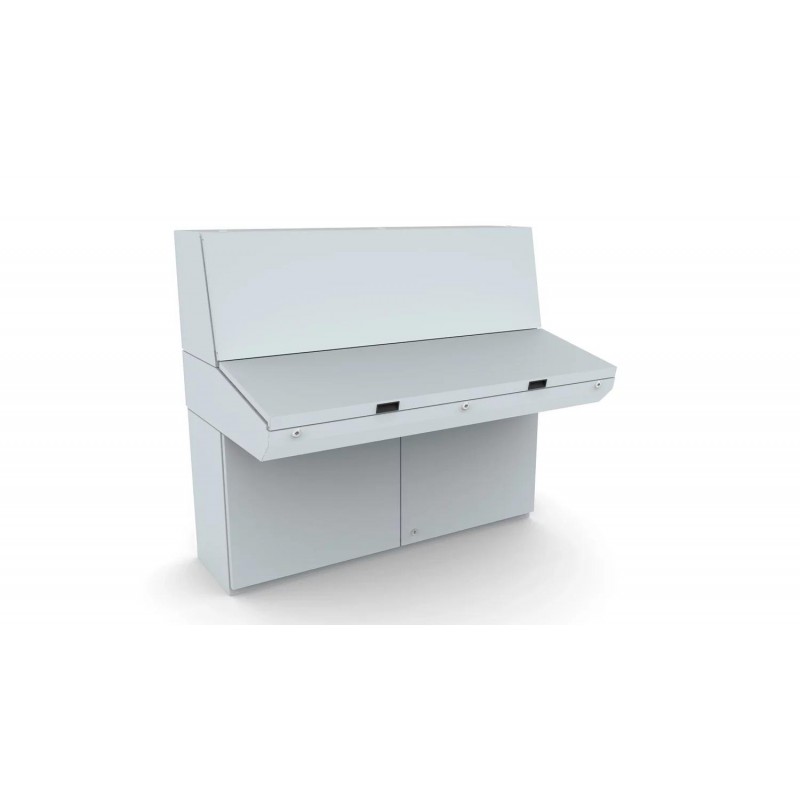

ELDON MPC102R5 MPC102R5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MPC102R5 ELDON Desk console, 250x1000x985

Reference: MPC102R5

Manufacturer: ELDON

Description:

Desk console, 250x1000x985
Console table, 250x1000x985, combinable, without MP, sheet steel, IP66
Desk console, 250x1000x985, Combinable enclosure, no MP, mild steel, IP66

Categories:

  • Cabinet enclosures > Desk system (switchgear cabinet)
  • ELDON > Steel Console Systems

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 582,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: Body and door: 1.5 mm mild steel. Rear panel: 1.5 mm mild steel. Bottom plates: 1.2 mm galvanized steel. Mounting plate: 2.5 mm galvanized steel.
  • Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
  • Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Top section and desk panels held open by self engage/self release mechanical panel stays. Concealed hinges, allowing 90° opening on the desk. Double door on 1200 and 1600 mm wide base units.
  • Mounting plate: Standard mounting plate in base unit. Fixed by fixing brackets on C rail, top and bottom, for depth adjustment. Optional in desk and top section units.
  • Lock: Double-bit 3 mm locks for top section and desk unit. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.
  • Cable access: Bottom opening in base unit for cable access. Bottom plates for cable glanding supplied as standard.
  • Earthing: M8 threaded studs on bodies, doors and rear panels.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Single door: IP 66, TYPE 4, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
  • Delivery: The base unit is provided with a mounting plate as standard. Desk and top section units have mounting plates provided as accessories. All top and base openings can be closed by choosing the appropriate accessory plate. Suitable nuts and washers for the various earthing studs are provided.
  • Mounting plate: Standard mounting plate in base unit; fixed by fixing brackets on C rail, top and bottom, for depth adjustment; optional in desk and top section unit
Atributo del producto Valor
Height250mm
Width1000mm
Depth985mm
Mounting Plate IncludedNo
TypeDesk Unit
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Weight43kg
UPC783510510510
EAN8713574128132
Standard Packaging Quantity1
Packing Quantity1

ETIM for MPC102R5 Cabinets and enclosures (EC000784)

Feature nameComponent of the desk system (EF006789)
Feature valueDesk console
Feature nameWidth (EF000008)
Feature value1.00 mm
Feature nameHeight (EF000040)
Feature value250.00 mm
Feature nameDepth (EF000049)
Feature value985.00 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7.04
Feature nameNumber of doors (EF000122)
Feature value1.00
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value12

DATASHEET - PDF

Title
Size
Type
MPC102R5 MPC102R5 EN_MPC061R5.pdf
839 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
