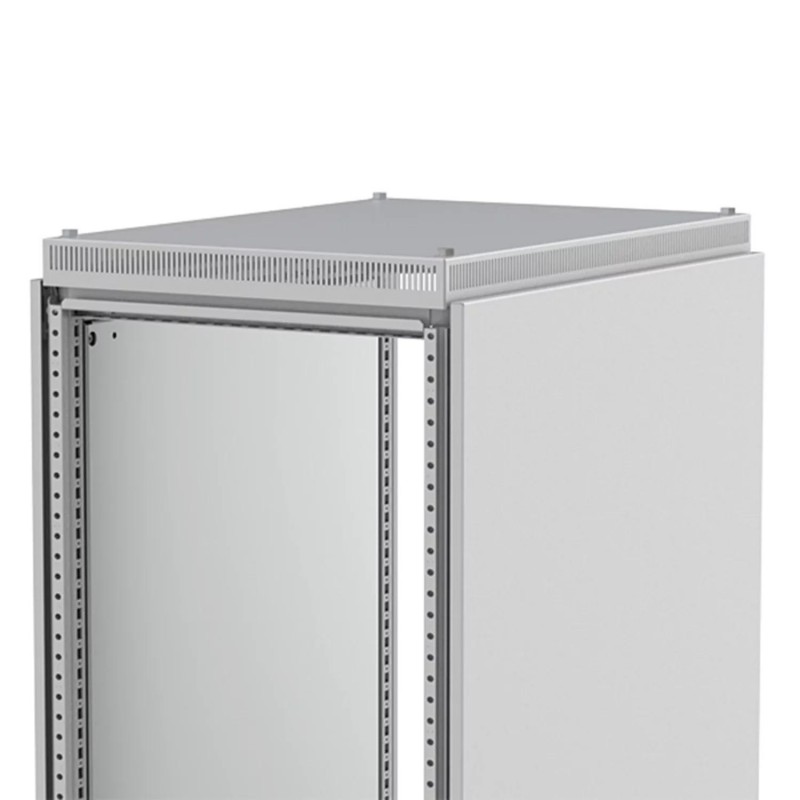

CVR0603R5 ELDON Ceiling plate, 600x300, sheet steel, ventilated
CVR0603R5
ELDON
Ceiling plate, 600x300, sheet steel, ventilated
Ventilation Roofs, CVR, 58x600x300mm, Zinc Plated, Mild Steel
Cabinet enclosures > Ventilation plate (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: Raised roof with 2.5 mm ventilation slots and filter material.
- Material: 1.5 mm steel plate. Filter material: EU 4 according to DIN 24185.
- Finish: RAL 7035 structured powder coating.
- Temperature resistance: 100 °C.
- Protection: Complies with IP 31, TYPE 1.
- Pack quantity: 1 piece with mounting brackets and ventilation filter.
- Note: Increases the enclosure height by 40 mm.
| Atributo del producto | Valor |
|---|---|
| Height | 58mm |
| Width | 600mm |
| Depth | 300mm |
| Product Family | Free-Standing |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5mm |
| Package Quantity | 1 |
| Weight | 3.6kg |
| Enclosure Material | Mild Steel |
| UPC | 783510463472 |
| EAN | 8713574226883 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Suitable for enclosure building width (EF000326) | 600.00 mm |
| Suitable for enclosure building depth (EF000327) | 300.00 mm |
| Width (EF000008) | 600.00 mm |
| Height (EF000040) | 58.00 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| With built-in filter (EF001162) | Yes |
| Mounting method (EF000003) | Screw mounting |
| Degree of protection (IP) (EF005474) | IP31 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| CVR0603R5 CVR0603R5 EN_CVR0603R5.pdf | 122 Kbytes |
|
| Download general catalog |
|
