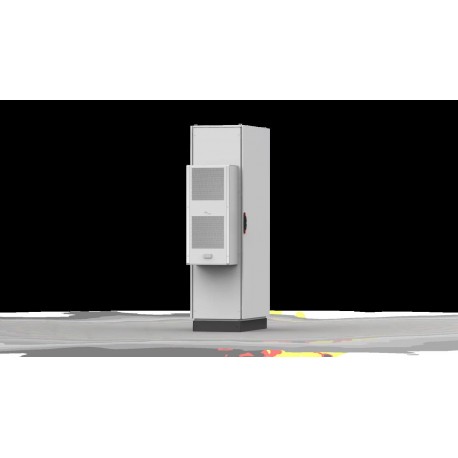

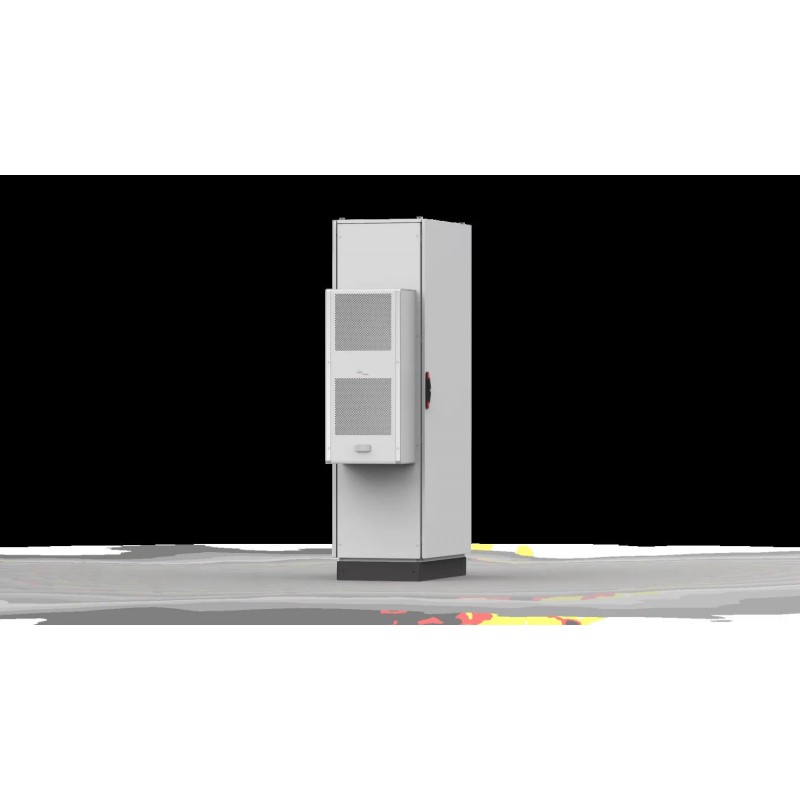

CUVN40504SS ELDON Cooling unit 4050W CUVN40504SS
CUVN40504SS
ELDON
Cooling unit 4050W CUVN40504SS
Refrigerator 4050 W, 400 V, stainless Steel, IP54, NEMA 12
Cooling unit 4050W, 400V, Stainless steel, IP54, NEMA 12
Cabinet enclosures > Air conditioner (switchgear cabinet)
General Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
- Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing Smart energy management reduces the cooling units energy consumption by up to 23%
- The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
- The smart energy management and ease of installation will reduce both operational and installation costs
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
- Once installed, the door switch will turn the cooling unit off, once the door is opened
- Voltage: 200-235 V
- Alternating current frequency: 50~60 Hz
- Power of the fan: 22 Watt
- Consumption current: 0.28A / 0.56A
- Air circulation: 4.4 / 8.8 m³/min
- Measurement limits: -50 ºC ... +125 ºC
- Measurement accuracy: +/-0.5ºC
- Working temperature: 0...+50ºC
- Relative air humidity (air temp. +35C): 80%
- Noise level: 35 decibel
- Lifetime: 30.000 hours
- Switch: No
- Thermostat: Yes
- Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m); version with 4 fans is supplied with a depth fixing bracket
| Atributo del producto | Valor |
|---|---|
| Height | 1217 mm |
| Width | 511 mm |
| Depth | 347 mm |
| Material | Stainless Steel |
| Finish | Plated |
| Color | Unpainted |
| Phase Quantity | 3 |
| Frequency | 50/60 Hz |
| UPC | 783510462949 |
| EAN | 8713574211254 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Operating voltage AC 50 Hz (EF008206) | 400.00 V |
| Operating voltage AC 60 Hz (EF008207) | 460.00 V |
| Operating voltage DC (EF008208) | None V |
| Voltage type (EF000187) | AC |
| Speed-regulated (EF011921) | |
| With temperature control (EF000745) | true |
| Function master/slave (EF007183) | false |
| With heating function (EF000479) | |
| Total cooling capacity according to EN 14511 at 35/35 °C (EF011920) | None W |
| Cooling air flow rate (EF024959) | None m³/h |
| Ambient temperature during operating (EF007515) | None °C |
| Width (EF000008) | 511.00 mm |
| Height (EF000040) | 1.22 mm |
| Depth (EF000049) | 347.00 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| CUVN40504SS CUVN40504SS EN_CUVN03602.pdf | 113 Kbytes |
|
| Download general catalog |
|
