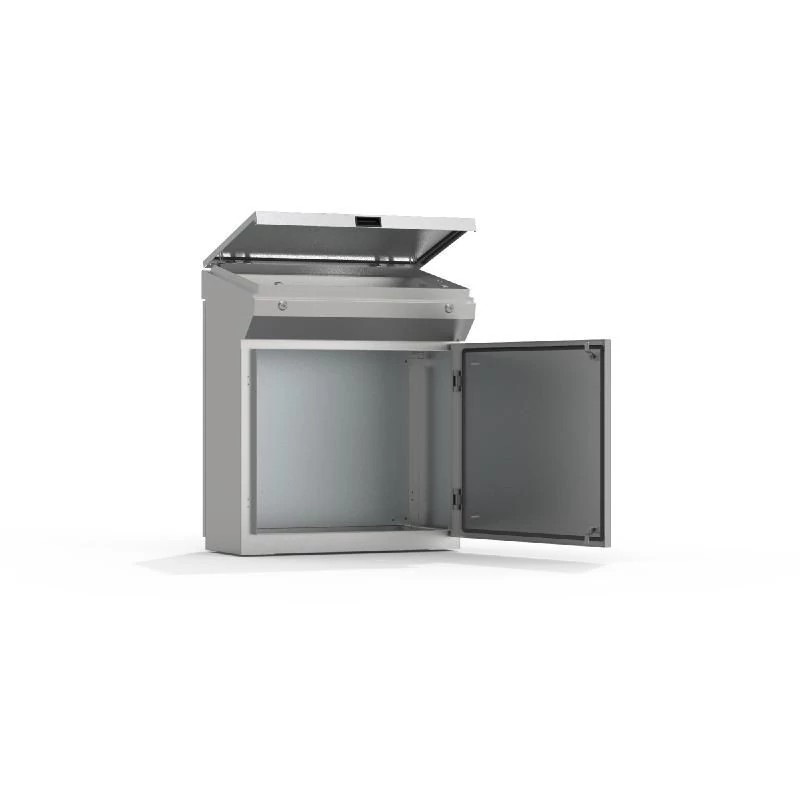

MPGS08 ELDON Console, 985x800x400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MPGS08 ELDON Console, 985x800x400

MPGS08

ELDON

Available

Ship on today

Console, 985x800x400

More details


Control Cabinets Switch Boxes Distribution Enclosures

Console Systems - ELDON

Stainless steel, console system. MPCS - ELDON

* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



The MPGS simple but effective one-piece console is available in five sizes. The top desk panel is held open by a self-engage/self-release mechanical panel stay and combines with the removable rear panel and front door, to ensure convenient access. The MPGS range provides high corrosion resistance and is the ideal solution for harsh environments. A range of 19" accessories adds further versatility.

Characteristics
NoteStainless steel
Height985 mm
Width800 mm
Depth400 mm
Mounting Plate
Height
790 mm
Mounting Plate
Width
699 mm
Max. enclosure
useful depth
357.5
Usable depth357,5
Part No. AISI 304MPGS08
Part No. AISI 316LMPGS08-316 *

Material:

AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.

Body:

Folded and seam welded. Console construction counts with a base that provides a distance between the fl oor and the lower part of the door/s acting as an integrated plinth.

Doors and panels:

Single folded surface mounted with hinges allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges on top edge allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 wide base units.

Mounting plate:

Standard mounting plate in base unit.

Lock:

Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.

Cable inlet:

Bottom opening for cable access. Bottom plate for cable glanding supplied as standard.

Earthing:

M8 threaded studs on body, door, top panel and rear panel.

Finish:

240s pre grained stainless steel (average 0,5 micron).

Protection:

Single door: IP 66 | TYPE 4X, 12, 13 | IK 10. Double door: IP 55 | TYPE 12, 13 | IK 10.

Delivery:

Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.

Datasheet - PDF

Title: Language: Size: Type:
Complete catalogue 1: MPGS08 English 2 Mbytes Complete catalogue 1: MPGS08
