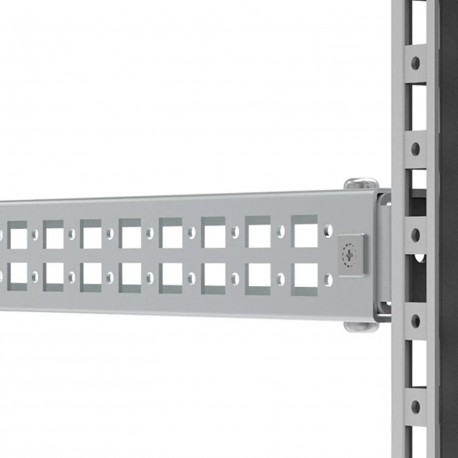

CLPF300 ELDON Profile mounting , 300, galvanized. 4 units.
CLPF300
ELDON
Profile mounting , 300, galvanized. 4 units.
Mounting profiles, CLPF, 300, zinc plated
Click in profile, 300, zinc plated
Cabinet enclosures > Profile (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features

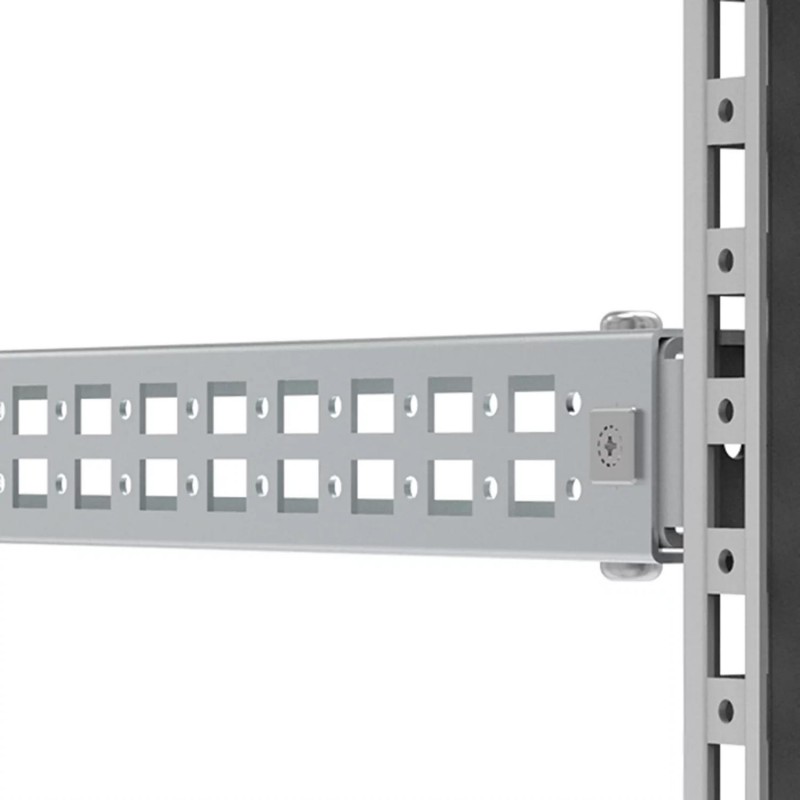

- Description: The CLPF profile system is a 40 mm wide and 25 mm high profile, which can be mounted in all directions on the enclosure's frame. It can also be used in combination with the CLPK and the VB profiles. By turning the profile it can be used as a standard CP20/40 profile in combination with GLM 40/6 sliding nut, to mount installation material which needs adjusting in depth. The profiles, when mounted onto the enclosure's frame are flush with the enclosure's profiles. Two rows of hole patterns for cage nut fixing and self tapping screws are provided. For 90 mm wide profiles two profiles can be mounted next to each other.
- Material: Zinc plated steel.
- Pack quantity: 4 profiles including snap-line for fixing.
| Atributo del producto | Valor |
|---|---|
| Height | 40mm |
| Width | 225mm |
| Depth | 25mm |
| Compatible Enclosure Height | 300mm min |
| Compatible Enclosure Width | 300mm min |
| Compatible Enclosure Depth | 300mm min |
| Max Load Horizontal C | 800 N |
| Max Load Horizontal | 1000 N |
| Material | Mild Steel |
| Finish | Zinc Plated |
| Thickness | 1.5mm |
| Package Quantity | 4 |
| Enclosure Material | Mild Steel |
| UPC | 783510459611 |
| EAN | 8713574226685 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Number of height units (EF003561) | |
| Model (EF000010) | |
| Material (EF002169) | |
| Surface finishing (EF006569) | |
| Length (EF001438) | None mm |
| Stepless mounting (EF001086) | |
| Mounting method (EF000003) | |
| Profile height busbar (EF008269) | None mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| CLPF300 CLPF300 EN_CLPF300.pdf | 114 Kbytes |
|
