ELDONSteel Floor Standing EnclosuresCLPK500 ELDON Click in profile, 500 CLPK500
ELDON CLPK500 CLPK500 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CLPK500 ELDON Click in profile, 500 CLPK500

Reference: CLPK500

Manufacturer: ELDON

Description:

Click in profile, 500 CLPK500
Profile fast-fixing, 500, galvanized. Pack of 4 units.
Click-In Profiles, CLPK, 74x453x26mm, Zinc Plated, Mild Steel

Categories:

  • Cabinet enclosures > Profile (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 66,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

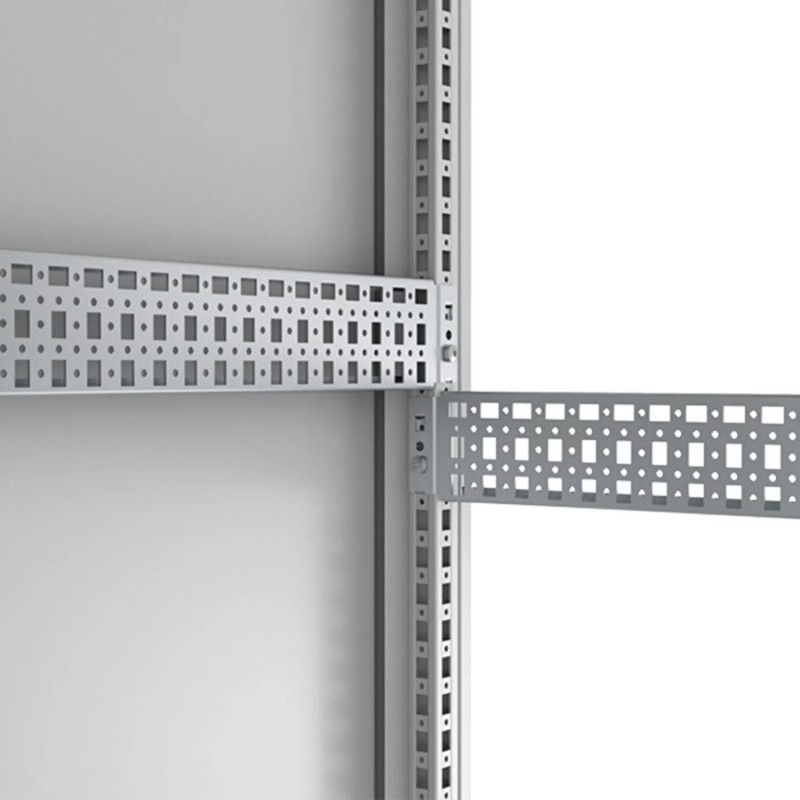

  • Description: Universal profile for both depth and width fitting on the 25 mm DIN hole pattern of the enclosure's frame or in combination with the CLPF and VB profiles. The 75 mm wide profile is equipped with three rows of holes of which one is turned 90º. This makes it possible to mount the CLPF profiles in both directions. The CLPK can be secured by the use of self tapping screws.
  • Material: 1.5 mm zinc plated steel.
  • Pack quantity: 4 profiles.
Atributo del producto Valor
Height74 mm
Width500 mm
Depth26 mm
Max Load2000 N
MaterialMild Steel
FinishZinc Plated
ColorUnpainted
Thickness1.5 mm
Package Quantity4
Weight2 kg
UPC783510459925
EAN8713574107854
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for CLPK500 Cabinets and enclosures (EC002518)

Feature nameNumber of height units (EF003561)
Feature value3.00
Feature nameModel (EF000010)
Feature value482.6 mm (19 inch)
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valueGalvanised
Feature nameLength (EF001438)
Feature value19.69 mm
Feature nameStepless mounting (EF001086)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueSnap mounting
Feature nameProfile height busbar (EF008269)
Feature value406.00 mm

DATASHEET - PDF

Title
Size
Type
CLPK500 CLPK500 EN_CLPK300.pdf
144 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
