L406 ELDON Chassis guide D 406 L406
L406
ELDON
Chassis guide D=406 L406
Guide chassis, D=406. Pack of 2 units.
Friction Slide, L, 43x386x42mm, Zinc Plated, Mild Steel
Cabinet enclosures > Component for installation (switchgear cabinet)

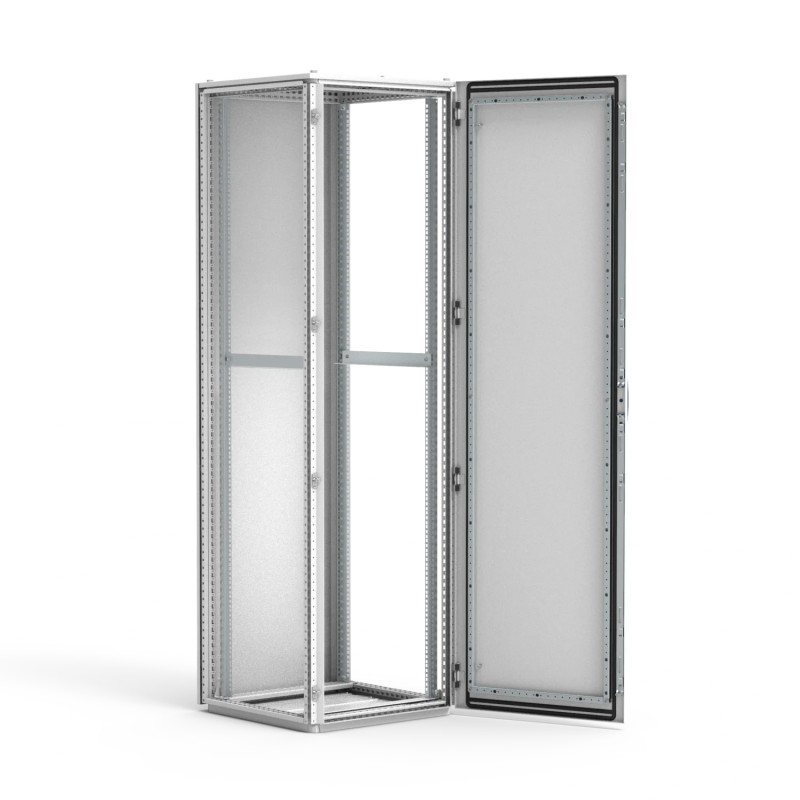

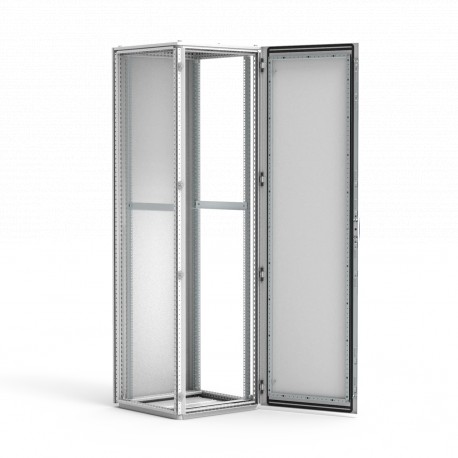

Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: To support heavy components which are only fitted to the front. Mounted between two 19" profiles. Version fixed with 2 screws per profile, and version with click-in fixation.
- Material: Click-in version 1.5 mm and mounted version 3 mm zinc plated steel.
- Pack quantity: 1 pair with fixing material.
| Atributo del producto | Valor |
|---|---|
| Height | 43mm |
| Width | 406mm |
| Depth | 42mm |
| Max Load | 980N |
| Material | Mild Steel |
| Finish | Plated |
| Thickness | 3mm |
| Package Quantity | 2 |
| Weight | 0.8kg |
| Enclosure Material | Mild Steel |
| UPC | 783510484040 |
| EAN | 8713574006867 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 2 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Angle profile |
| Width (EF000008) | 386.00 mm |
| Height (EF000040) | 43.00 mm |
| Depth (EF000049) | 42.00 mm |
| Material (EF002169) | Metal |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| L406 L406 EN_L279.pdf | 137 Kbytes |
|
| Download general catalog |
|
