ELDONSteel Floor Standing EnclosuresCCM04IP66 ELDON Union Kit corner, IP66, 316 Stainless Steel. 6 units.

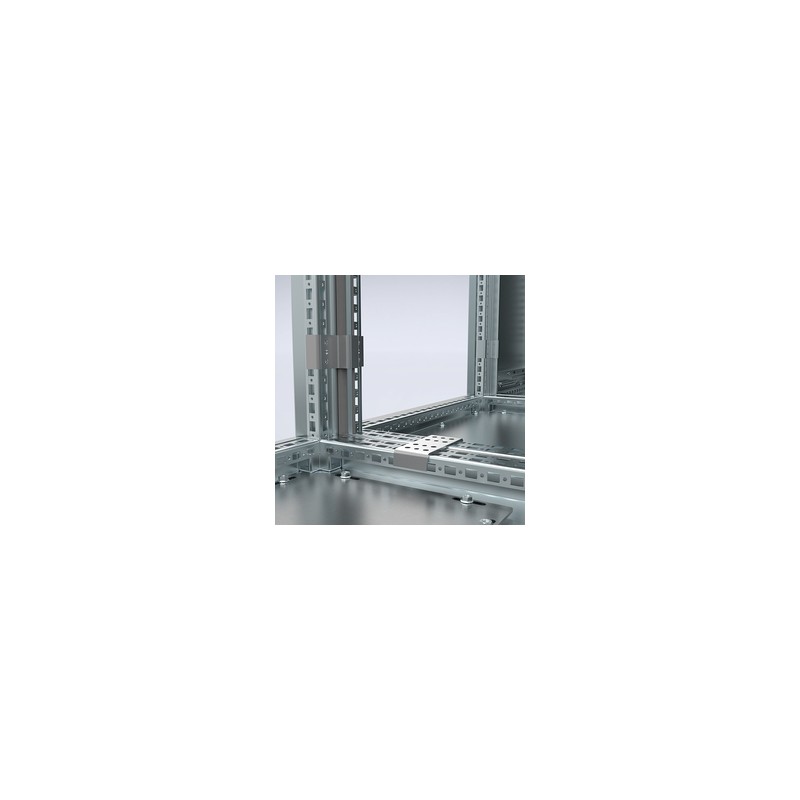

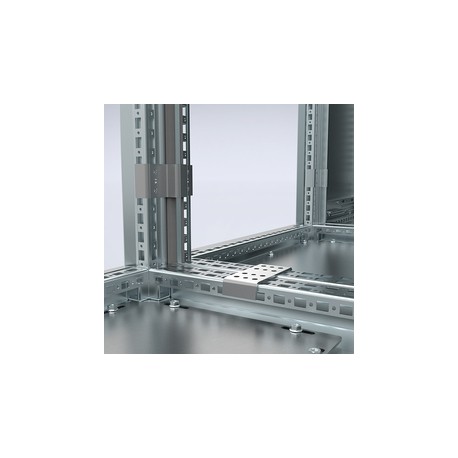

ELDON CCM04IP66 CCM04IP66 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CCM04IP66 ELDON Union Kit corner, IP66, 316 Stainless Steel. 6 units.

Reference: CCM04IP66

Manufacturer: ELDON

Description:

Union Kit corner, IP66, 316 Stainless Steel. 6 units.
Union Kit corner, IP66, 316 Stainless Steel. Pack of 6 units.
These brackets provide an extra support when bayed enclosures are fully equipped and require lifting. The brackets are manufactured from stainless steel 316L.
Internal Top And Bottom Baying Kit, CCM04IP66, Mild Steel

Categories:

  • Cabinet enclosures > Front plate (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 48,25 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data

Description:

For extra support when bayed enclosures are fully equipped and require lifting.

Material:

3 mm stainless steel 316L.

Pack quantity:

6 brackets with mounting accessories.

Features

Feature:

A baying kit, mounted on the interior corners of the profiles, to allow for side-to-side baying of combinable floor standing enclosures.

Advantage:

The strongest baying option available that can be assembled without removing the door and rear panel and without the use of tools.

Benefit:

Reduced assembly time and reliable baying if enclosures are lifted.

Comment:

These brackets should not be used in combination with a mounting plate if mounted on the side of the enclosure, or in combination with the mounting plate filler (MPF) unless the mounting plates are brought 50 mm forward.

ETIM for CCM04IP66 Cabinets and enclosures (EC000456)

Feature nameWidth (EF000008)
Feature value95.00 mm
Feature nameHeight (EF000040)
Feature value64.00 mm
Feature nameNumber of height units (EF003561)
Feature value2.00
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
CCM04IP66 CCM04IP66 EN_CCM04IP66.pdf
188 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
