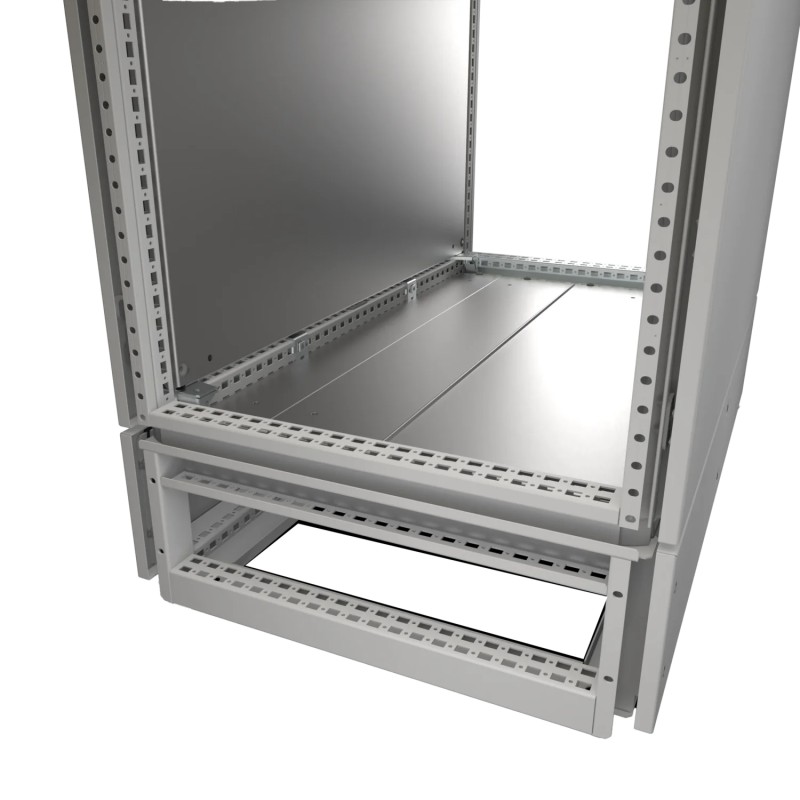

PCU3108R5 ELDON Cabling frame, 300x1000x800
PCU3108R5
ELDON
Cabling frame, 300x1000x800
Frame nished 300x1000x800, combinable
Front/Rear Bottom Frames, PCU, 300x1000x800mm, Light Gray, Steel
Cabling frame, 300x1000x800, Combinable enclosure
Cabinet enclosures > Base/base element (switchgear cabinet)
Power and distribution
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: For fixing and routing of cables or mounting of busbar. Identical hole pattern to the enclosure's frame makes all relevant accessories (e.g. CLPF, CLPK, etc) possible to mount. Fixed to the base of the enclosure by M12 screws (provided).
- Side panels: PCUP supplied as an accessory.
- Material: Frame in 1.75 mm steel plate, panels in 1.35 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55.
- Pack quantity: 1 piece with front and back panels including mounting accessories. Add CBP for closing bottom opening.
| Atributo del producto | Valor |
|---|---|
| Height | 300mm |
| Width | 999mm |
| Depth | 800mm |
| Enclosure Material | Stainless Steel |
| Material | Steel |
| Finish | Plated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| UPC | 783510525538 |
| EAN | 8713574127432 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Base front/back |
| Material (EF002169) | Steel |
| Colour (EF000007) | Grey |
| Width (EF000008) | 1.00 mm |
| Height (EF000040) | 300.00 mm |
| Depth (EF000049) | 800.00 mm |
| Suitable for enclosure building width (EF000326) | 1.00 mm |
| Suitable for enclosure building depth (EF000327) | 800.00 mm |
| Suitable for aeration/de-aeration (EF000324) | No |
| Suitable for cable patch (EF007251) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| PCU3108R5 PCU3108R5 EN_PCU2046R5.pdf | 138 Kbytes |
|
| Download general catalog |
|
