ELDONSteel Floor Standing EnclosuresCBPE0606 ELDON Bottom plate EMC, 600x600 CBPE0606

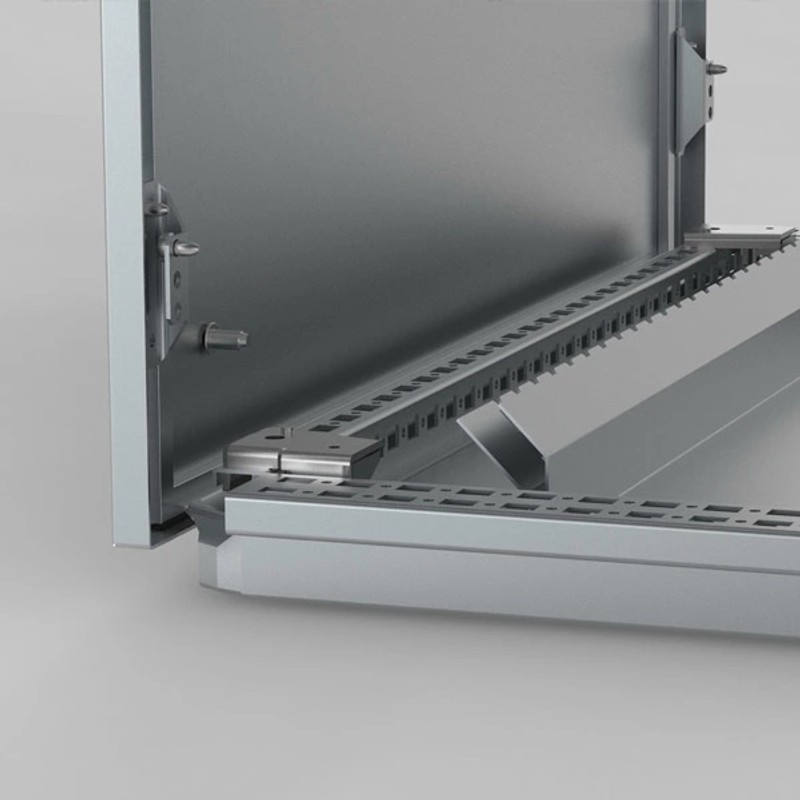

ELDON CBPE0606 CBPE0606 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CBPE0606 ELDON Bottom plate EMC, 600x600 CBPE0606

Reference: CBPE0606

Manufacturer: ELDON

Description:

Bottom plate EMC, 600x600 CBPE0606
Bottom plate EMC, 600x600, galvanized, with seal EMI
Bottom plate EMC, 600x600, Zinc plated, with EMI gasket

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 109,64 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Replaces two parts of the standard three or four piece bottom plates. Due to the hammer head cones, EMI cables can be directly earthed to the bottom plate keeping the "Faraday cage".
  • Material: 1,5 mm zinc plated steel.
  • Pack quantity: 2 pieces with EMI gasket and mounting accessories.
  • Zinc plated steel bottom plate for installing EMI cables into floor standing enclosures
  • EMI cables can be directly earthed to the bottom plates using the hammer head cones
  • EMI cables are directly earthed to the enclosure's frame through the bottom plate creating a "Faraday cage" maintaining the EMC performance of the enclosure
  • Zinc plated bottom plates should be used in combination with EMC floor standing enclosures
Atributo del producto Valor
Width600 mm
Depth600 mm
Enclosure MaterialGalvanized Steel
Product FamilyFree-Standing
MaterialSteel
FinishPlated
ColorUnpainted
Thickness1.5 mm
UPC783510455088
EAN8713574121898
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for CBPE0606 Cabinets and enclosures (EC002620)

Feature nameModel (EF000010)
Feature valueFloor plate
Feature nameSuitable for enclosure building width (EF000326)
Feature value600.00 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value600.00 mm
Feature nameWidth (EF000008)
Feature value600.00 mm
Feature nameDepth (EF000049)
Feature value600.00 mm
Feature nameMaterial (EF002169)
Feature valueMetal
Feature nameColour (EF000007)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
CBPE0606 CBPE0606 EN_CBPE0606.pdf
128 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
