ELDONStainless steel enclosuresA3003YZVM ELDON Large volume system, vert.

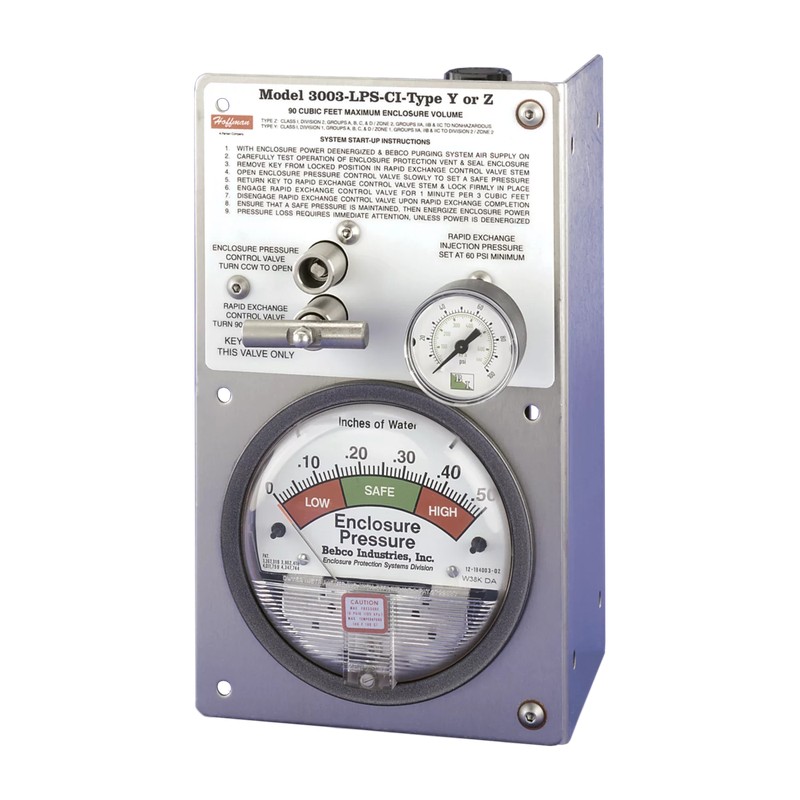

ELDON A3003YZVM A3003YZVM - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

A3003YZVM ELDON Large volume system, vert.

Reference: A3003YZVM

Manufacturer: ELDON

Description:

Large volume system, vert.
Large-Volume Type Y and Z Purging/Pressurization System, 90CF, Vertical Mount

Categories:

  • Cabinet enclosures > Air conditioner (switchgear cabinet)
  • ELDON > Stainless steel enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Vertical mount (VM) or horizontal mount (HM)
  • 90 cubic feet maximum enclosure volume
  • System face plate and mounting plate: Type 316L stainless steel
  • Regulator body: zinc with enamel finish
  • Manifold body: anodized aluminum with Type 316 stainless steel valves
  • Enclosure pressure gauge: aluminum with enamel finish
  • Gas supply gauge: poly case and nickel-plated tube
  • Enclosure protection vent—90 degree
  • Rapid exchange control valve
  • Enclosure supply and enclosure reference bulkhead fittings: Type 316 stainless steel
  • Fastener hardware
Atributo del producto Valor
Height242mm
Width140mm
MaterialStainless Steel 316L
FinishTumbled
Thickness1.98mm
Volume2.55m³
Weight4.54kg
UPC783510334291
EAN8713574247512
Standard Packaging Quantity1
Packing Quantity1

ETIM for A3003YZVM Cabinets and enclosures (EC000855)

Feature nameModel (EF000010)
Feature valueAir/air
Feature nameSpeed-regulated (EF011921)
Feature valueNo
Feature nameWith temperature control (EF000745)
Feature valueNo
Feature nameFunction master/slave (EF007183)
Feature valueNo
Feature nameWith heating function (EF000479)
Feature valueNo
Feature nameAmbient temperature during operating (EF007515)
Feature value-20.00 °C
Feature nameWidth (EF000008)
Feature value140.00 mm
Feature nameHeight (EF000040)
Feature value241.00 mm
Feature nameDepth (EF000049)
Feature value140.00 mm
