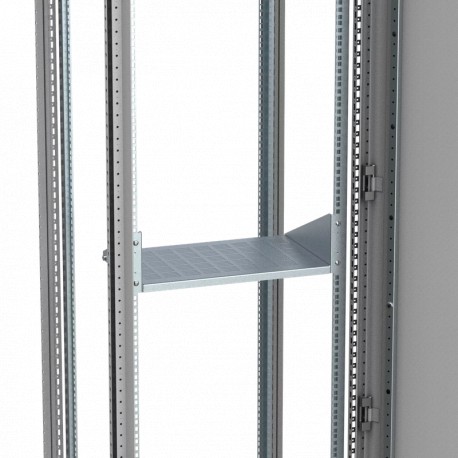

MTR1470 ELDON 19" Shelf 3U, 432x470 MTR1470
MTR1470
ELDON
19" Shelf 3U, 432x470 MTR1470
Tray 19", 3U, 432x470, steel sheet
19-inch Shelf 2U, 432x470, Mild steel
Cabinet enclosures > Component for installation (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: For front mounting. The tray can be adjusted towards front or rear. Ventilation openings.
- Additional information: Can be used with swing frames.
- Material: 1.5 mm steel.
- Finish: RAL 7035.
- Pack quantity: 1 complete kit with mounting material.
- The shelf can be mounted within enclosures using front 19-inch profiles only, such as in swing frames
- The shelf can be adjusted in height and provides further mounting possibilities, allowing components that do not have 19-inch fixation brackets, to be installed
- The ventilation openings do not prevent the enclosure's air circulation which reduces the risk of potential hot spots
- Max. loading: 150N
| Atributo del producto | Valor |
|---|---|
| Width | 482.6 mm |
| Depth | 500 mm |
| Rack Units | 2 |
| Material | Steel |
| Finish | Zinc Plated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5 mm |
| UPC | 783510523824 |
| EAN | 8713574012028 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Supporting plate for monitor |
| Suitable for enclosure building width (EF000326) | 481.00 mm |
| Suitable for enclosure building height (EF009583) | None mm |
| Suitable for enclosure building depth (EF000327) | 470.00 mm |
| Width (EF000008) | 432.00 mm |
| Height (EF000040) | 20.00 mm |
| Depth (EF000049) | 470.00 mm |
| Max. load capacity (EF000258) | None kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Other |
| RAL-number (EF000116) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MTR1470 MTR1470 EN_MTR1279.pdf | 195 Kbytes |
|
