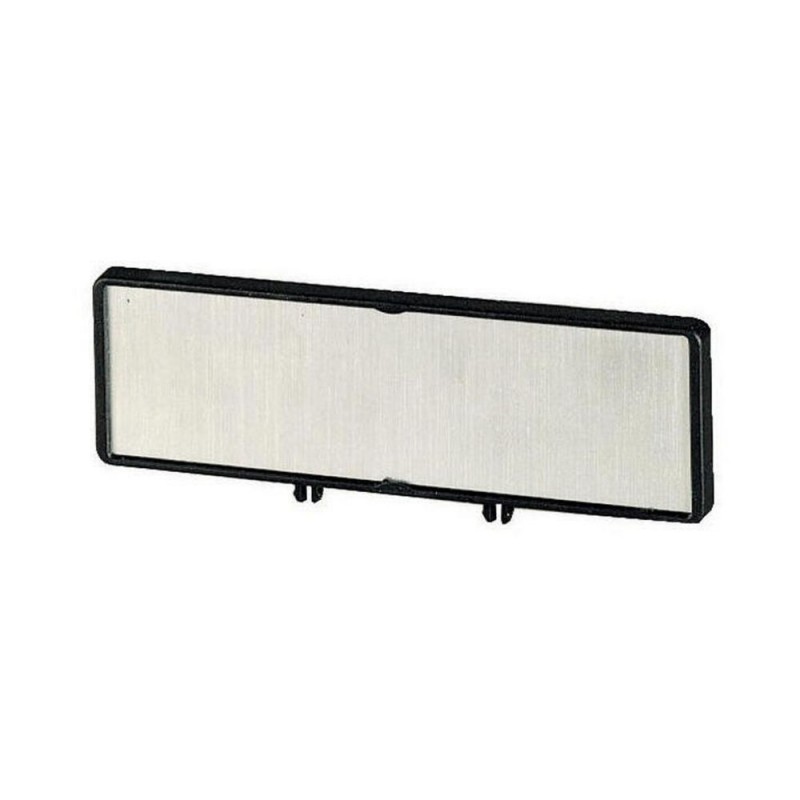

ZFS60-NZM7 065896 Y7-65896 EATON ELECTRIC External warning plate, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ZFS60-NZM7 065896 Y7-65896 EATON ELECTRIC External warning plate, blank

ZFS60-NZM7

065896

Y7-65896

EATON-MOELLER

External warning plate, blank

Indicator plate, empty

Eaton Moeller series NZM - Molded Case Circuit Breaker. External warning plate, blank

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Inscription: blank (for engraving or printing). Can be used for: NZM1(-4), PN1(-4), N(N/O)1(-4), NZM2(-4), PN2(-4), N(N/O)2(-4), NZM3(-4), PN3(-4), N(N/O)3(-4), NZM4(-4), N(N/O)4(-4)

More details


Auxiliary material > Warning/signing plate

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $6.53
Unit price: $6.53
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM operating element accessory
Catalog Number
065896
Model Code
ZFS60-NZM7
EAN
4015080658962
Product Length/Depth
5 mm
Product Height
27 mm
Product Width
64 mm
Product Weight
0.005 kg
Compliances
UL/CSA
IEC
RoHS conform

Product specifications

Used with
N3
NZM4(-4), N(S)4(-4)
NZM4-NA
N4-4
NS1
NS2
NZM3(-4), PN3(-4), N(S)3(-4)
NZM3-NA
NZM2(-4), PN2(-4), N(S)2(-4)
NZM4
N1
N1-4
N4
NS4
NZM1(-4), PN1(-4), N(S)1(-4)
NZM2-4
PN2
PN2-4
PN3-4
N2
NS3
NZM2-NA
NZM3
NZM1-4
NZM2
NZM3-4
PN1-4
N3-4
NZM1
NZM1-NA
NZM4-4
PN3
N2-4
PN1
Type
AccessoryExternal warning plate
Features
Waterproof
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Silver
Fitted with:
Alert/Information text
Mounting material
Frame
NZM1/2/3/4
Mounting Method
Other
Material quality
Other
Outer diameter
0 mm
Language of the imprint
Other
Meaning of the imprint
Other
Model
Other
Symbol
Other
Thickness of warning label
5 mm
Accessory shape
Rectangular
Material
Plastic
Inscription
Blank (for engraving or printing)

ETIM for 065896 Auxiliary material (EC001777)
Feature Name Feature Value
Shape (EF000051) Rectangular
Model (EF000010) Other
Material (EF002169) Plastic
Material quality (EF001257) Other
Halogen free (EF000025) No
Waterproof (EF001823) Yes
With alert-/information symbol (EF006312) No
Symbol (EF025222) Other
With alert-/information text (EF006313) Yes
Literal imprint (EF015918) Other
Language of the imprint (EF015922) Other
Width (EF000008) 64 mm
Height (EF000040) 27 mm
Diameter (EF000551) 0 mm
Thickness (EF000125) 5 mm
Type of fastening (EF002442) Other
With mounting material (EF006009) Yes
Foldable (EF000643) No
Colour (EF000007) Silver
Fluorescent (EF009518) No
Photoluminescent (glow in the dark) (EF006058) No
Mounting method (EF000003) Other
