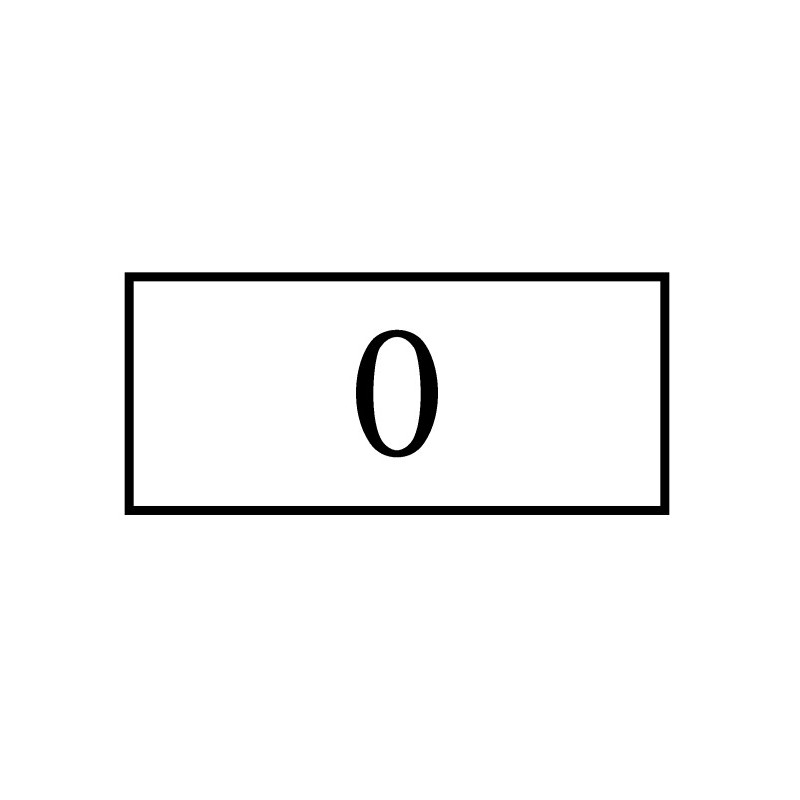

XQ25TS-*-* 109773 Y7-109773 EATON ELECTRIC Insert label, customized inscription View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

XQ25TS-*-* 109773 Y7-109773 EATON ELECTRIC Insert label, customized inscription

XQ25TS-*-*

109773

Y7-109773

EATON-MOELLER

Insert label, customized inscription

XQ25TS-*-*

Eaton Moeller® series RMQ16 Insert label, customized inscription

Insert label, Product range: Accessories, Single unit, with customized inscription using the Label Editor → Data sheet, additional product information (links), For use with: Q25TS-…, Connection to SmartWire-DT: no

More details


Low-voltage industrial components > Legend plate for control circuit devices

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Insert label
Catalog Number
109773
Model Code
XQ25TS-*-*
Product Length/Depth
1 mm
Product Height
38 mm
Product Width
25 mm
Product Weight
0.009 kg
Certifications
UL/CSA certification not required

Features & Functions

Color
Other
Features
Engravable
Fitted with:
Customized inscription using the Label Editor
Inscription
Other
Shape
Square

General

Product Category
Accessories
Suitable for
Push button

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 109773 Low-voltage industrial controls and switchgear (EC000621)
Feature Name Feature Value
Shape (EF000051) Square
Construction type (EF000767) Flat
Colour (EF000007) Other
Literal imprint (EF015918) Other
Language of the imprint (EF015922) Other
Imprint ISO symbols (EF006094) Other
Imprint (EF000131) Other
Engravable (EF005877) Yes
Programme diameter (EF001539) 16 mm
Width (EF000008) 25 mm
Height (EF000040) 38 mm
Outer diameter (EF000015) 0 mm
Suitable for push button (EF007244) Yes
Suitable for illuminated push buttons (EF007254) No
Suitable for indicator light (EF007255) No
Suitable for mushroom head push button (EF007257) No
Suitable for signalling lamp (EF007261) No
Suitable for selector switch (EF007263) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
XQ25TS-*-* Y7-109773 109773 EN_025434.pdf 1 Mbytes XQ25TS-*-* Y7-109773 109773 EN_025434.pdf
