XPRCD2006 184680 Y7-184680 EATON ELECTRIC xEnergy No Description
XPRCD2006
184680
Y7-184680
EATON-MOELLER
xEnergy - No Description
XPRCD2006

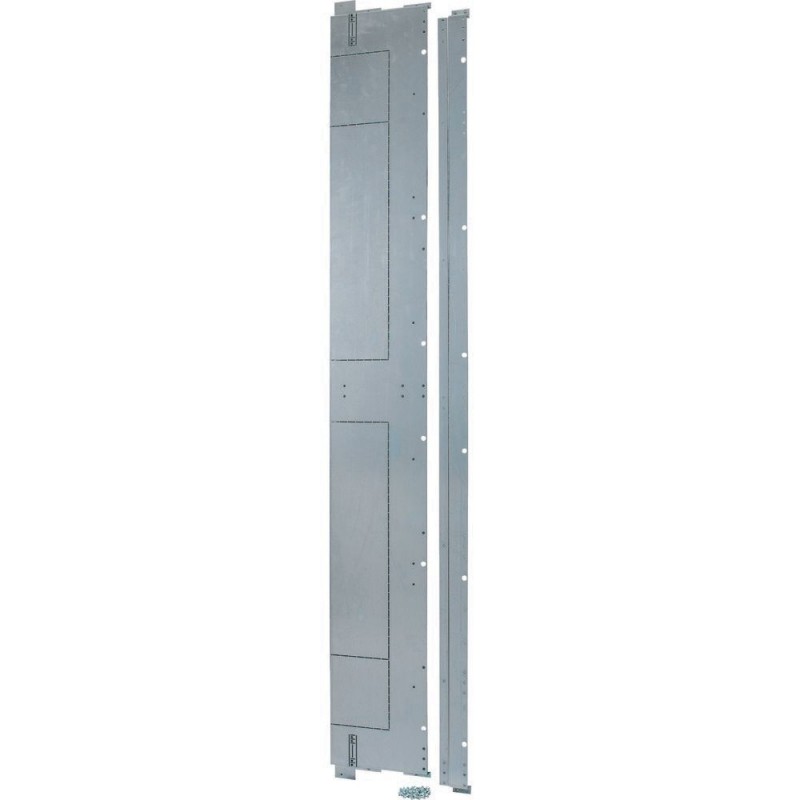

Separation, cable connection/main busbar area, for cabling box, D = 600 mm
Accessories for XR, end-to-end mounting plate / partition for cable connection area, section width: 800 mm, height: 2000 mm. For mounting terminals / contact blocks in cable connection area; serves as a partition between the cable connection area and main busbar area at the same time.
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Technical data ETIM 7.0
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 25 mm |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Width (EF000008) | 37 mm |
| Height (EF000040) | 1945 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XPRCD2006 Y7-184680 184680 EN_184680.pdf | 129 Kbytes |
|
