XN-312-GW-EC 178785 Y7-178785 EATON ELECTRIC XN-312-GW-EC
XN-312-GW-EC
178785
Y7-178785
EATON-MOELLER
XN-312-GW-EC

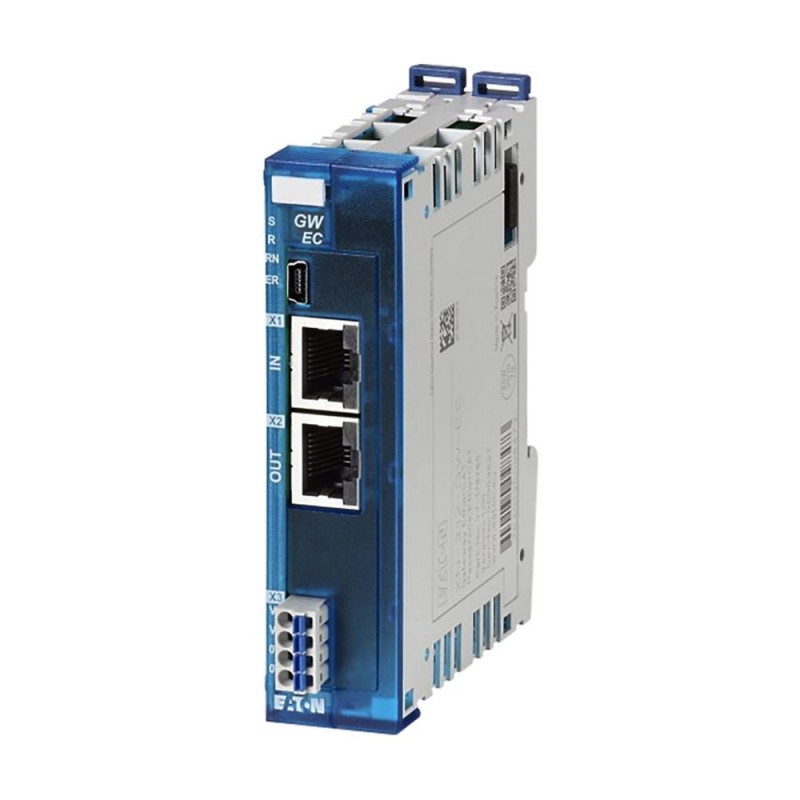

Eaton XN-312 Gateway to bus system EtherCAT
Digital gateway for EtherCAT field bus in the form of an XN300 I/O system slice module without a power supply
PLC's > Fieldbus, decentr. periphery - communication module
Remote I / O Modules XN300
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Product Name | Eaton XN-312 Gateway |
| Catalog Number | 178785 |
| Model Code | XN-312-GW-EC |
| EAN | 7640130098473 |
| Product Length/Depth | 104.2 mm |
| Product Height | 29.3 mm |
| Product Width | 80.3 mm |
| Product Weight | 0.095 kg |
| Certifications | CE UL508 EN 61131-2 EN 61000-6-2 EN 61000-6-4 cULus UL File No.: E135462 CSA-C22.2 No. 142-M |
Features & Functions
| Features | Fieldbus connection over separate bus coupler possible Fieldbus connection over separate bus coupler possible |
| Fitted with: | Potential separation |
General information
| Degree of protection | IP20 |
| Mounting method | Rail mounting possible |
| Type |
|
| Used with | XN300 Brightlayer |
| Voltage type | DC |
Ambient conditions, mechanical
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 |
| Vibration resistance | According to IEC/EN 60068-2-6 |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 55 °C |
Electro magnetic compatibility
| Surge rating | 0.5 kV, Supply cable, Surge (IEC/EN 61131-2:2008, Level 1), EMC |
Terminal capacities
| Terminal capacity | 0.25 - 0.75 mm², with ferrules with plastic collar 0.25 - 1.5 mm², solid |
| Gauge pin | A1 (according to IEC/EN 60947-1) |
| Stripping length (main cable) | 10 mm |
Electrical rating
| Supply voltage | 18-36 V DC, Power supply, permissible voltage |
| Supply voltage at DC - min | 18 V |
| Supply voltage at DC - max | 30 V |
Communication
| Field voltage | 24 V DC (UL) |
| Interfaces | Mini-USB (Service interface) Ethernet (Ethernet-IP protocol), Field bus connection |
| Protocol | Other bus systems EtherCAT |
Safety
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
Design verification
| Static heat dissipation, non-current-dependent Pvs | 2.5 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Meets the product standard's requirements. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 18 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Number of HW-interfaces other (EF003027) | 1 |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard eGPRS (EF009703) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard LTE (EF009709) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | Yes |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Certified for UL hazardous location class I (EF017622) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Width (EF000008) | 80.3 mm |
| Height (EF000040) | 29.3 mm |
| Depth (EF000049) | 104.2 mm |
