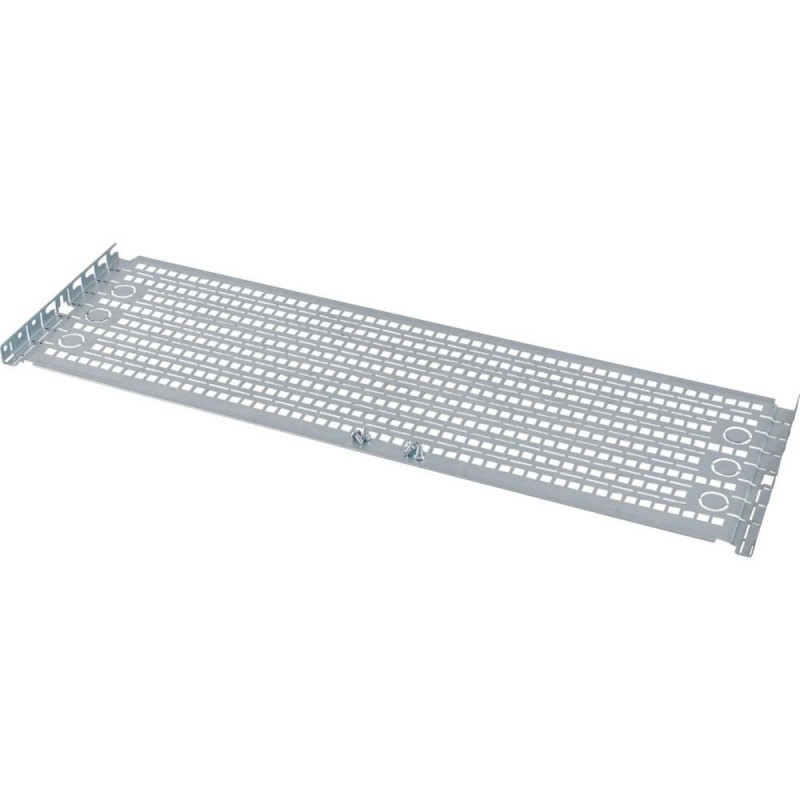

XLPUH8 196225 Y7-196225 EATON ELECTRIC Universal horizontal partition for module width 800mm
XLPUH8
196225
Y7-196225
EATON-MOELLER
Universal horizontal partition for module width 800mm
XLPUH8
Eaton xEnergy Light LV systems LV switchgear. Universal Horizontal Partition for module width 800mm
Universal Horizontal Partition for module width 800mm, 1mm galvanized steel
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Internal separation form 4b
Internal separation form 4a
Internal separation form 3a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 0 mm |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 720 mm |
| Height (EF000040) | 18.5 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XLPUH8 Y7-196225 196225 EN_196225.pdf | 229 Kbytes |
|
