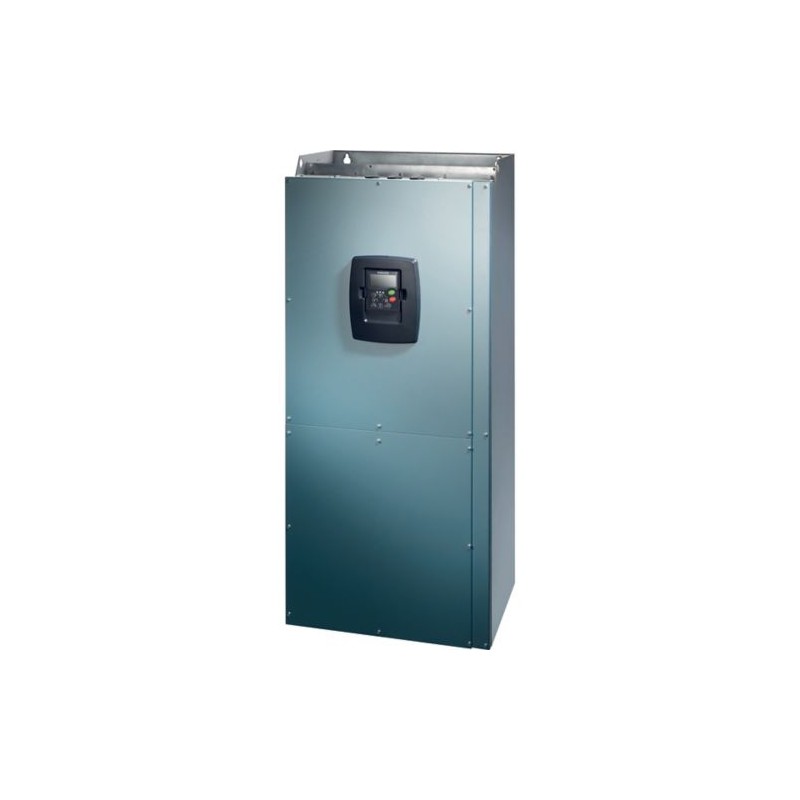

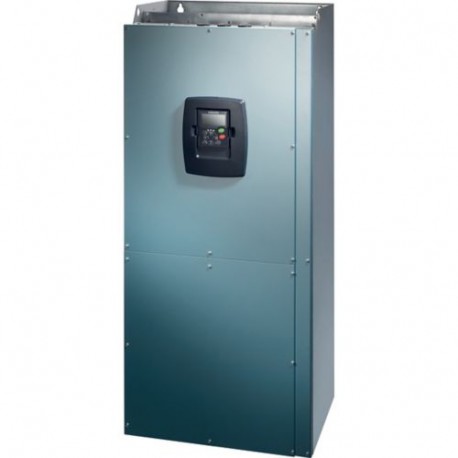

SVX100A1-5A4B2 179010 EATON ELECTRIC Variable frequency drive
SVX100A1-5A4B2
179010
EATON-MOELLER
Variable frequency drive
SVX FreqD 90kW 690V IP21 EMV BrCh coated
Low-voltage industrial components > Frequency converter less than 1 kV
Eaton Frequency Converters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton SVX Variable frequency drive
Catalog Number
179010
Model Code
SVX100A1-5A4B2
EAN
4015081743292
Product Length/Depth
1150 mm
Product Height
362 mm
Product Width
480 mm
Product Weight
58 kg
Certifications
UL 508C
IEC/EN 61800-3
UL Listed
IEC/EN 61800-5-1
CE marking
CSA-C22.2 No. 14
UL
IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
DNV
IEC/EN61800-5
CE
RoHS, ISO 9001
CUL
UL report applies to both US and Canada
UL File No.: E134360
Certified by UL for use in Canada
RCM
CSA Class No.: 3211-06
IEC/EN 61800-3
UL Listed
IEC/EN 61800-5-1
CE marking
CSA-C22.2 No. 14
UL
IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
DNV
IEC/EN61800-5
CE
RoHS, ISO 9001
CUL
UL report applies to both US and Canada
UL File No.: E134360
Certified by UL for use in Canada
RCM
CSA Class No.: 3211-06
General
Communication interface
PROFIBUS-DP
LonWorks, optional
Modbus-TCP, optional
Modbus-RTU, optional
DeviceNet, optional
EtherCAT, optional
CANopen®, optional
BACnet MS/TP, optional
Ethernet IP, optional
PROFINET, optional
LonWorks, optional
Modbus-TCP, optional
Modbus-RTU, optional
DeviceNet, optional
EtherCAT, optional
CANopen®, optional
BACnet MS/TP, optional
Ethernet IP, optional
PROFINET, optional
Connection to SmartWire-DT
No
Degree of protection
IP21
NEMA Other
NEMA Other
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Environmental class
3C2, 3S2 (Air quality)
Fitted with:
Radio interference suppression filter
IGBT inverter
OLED display
Brake chopper
Internal DC link
Additional PCB protection
IGBT inverter
OLED display
Brake chopper
Internal DC link
Additional PCB protection
Frame size
FR9
Mounting position
Vertical
Product Category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Radio interference class
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Suitable for
Branch circuits, (UL/CSA)
Climatic environmental conditions
Altitude
Above 1000 m with 1 % performance reduction per 100 m
Max. 3000 m
Max. 1000 m
Max. 3000 m
Max. 1000 m
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
< 95 % relative humidity, no condensation, no corrosion, no dripping water
Main circuit
Mains voltage - min
525 V
Mains voltage - max
690 V
Operating mode
Sensorless vector control (SLV)
U/f control
U/f control
Output frequency - min
0 Hz
Output frequency - max
320 Hz
Output voltage (U2)
600 V AC, 3-phase
690 V AC, 3-phase
690 V AC, 3-phase
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Rated frequency - min
45 Hz
Rated frequency - max
66 Hz
Rated operational current (Ie) at 110% overload
125 A
Rated operational current (Ie) at 150% overload
100 A
Rated operational power at 690 V, 50 Hz
90 kW
Rated operational power at 690 V, 50 Hz, 110% overload
110 kW
Rated operational voltage
690 V AC, 3-phase
600 V AC, 3-phase
600 V AC, 3-phase
Resolution
0.01 Hz (Frequency resolution, setpoint value)
Supply frequency
50/60 Hz
Switching frequency
1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit
System configuration type
AC supply systems with earthed center point
Voltage rating - max
690 V
Motor rating
Assigned motor current IM at 690 V, 50 Hz, 110% overload
114 A
Assigned motor current IM at 690 V, 50 Hz, 150% overload
93 A
Assigned motor current IM at 690 V, 60 Hz, 110% overload
109 A
Assigned motor current IM at 690 V, 60 Hz, 150% overload
86 A
Assigned motor power at 690 V, 60 Hz
100 HP
Assigned motor power at 690 V, 60 Hz, 110% overload
125 HP
Control circuit
Number of inputs (analog)
2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)
Number of inputs (digital)
6 (parameterizable, max. 30 V DC)
Number of outputs (analog)
1
Number of outputs (digital)
1 (parameterizable, 48 V DC/50 mA)
Number of relay outputs
2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))
Rated control voltage (Uc)
24 V DC (external, max. 250 mA)
Design verification
Equipment heat dissipation, current-dependent Pvid
2250 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Mains voltage (EF006780) | 525 V |
| Mains frequency (EF006783) | 50/60 Hz |
| Max. output frequency (EF007350) | 320 Hz |
| Number of analogue outputs (EF001995) | 1 |
| With control element (EF001538) | No |
| Application in industrial area permitted (EF007294) | No |
| Application in domestic- and commercial area permitted (EF007295) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for BACnet (EF011944) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| With optical interface (EF003028) | No |
| With PC connection (EF006107) | No |
| Integrated breaking resistance (EF007293) | No |
| 4-quadrant operation possible (EF006803) | No |
| Type of converter (EF006978) | Other |
| Degree of protection (IP) (EF005474) | IP21 |
| Degree of protection (NEMA) (EF011959) | Other |
| Height (EF000040) | 362 mm |
| Width (EF000008) | 480 mm |
| Depth (EF000049) | 1150 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| SVX100A1-5A4B2 179010 ES_125486.pdf | 5 Mbytes |
|
