EATON - MOELLERModular Switchgear – Others and Accessories SRCD1COD 196847 Y7-196847 EATON ELECTRIC Digital Light intensity time switch, DIN rail 2 TE, weekly program,..

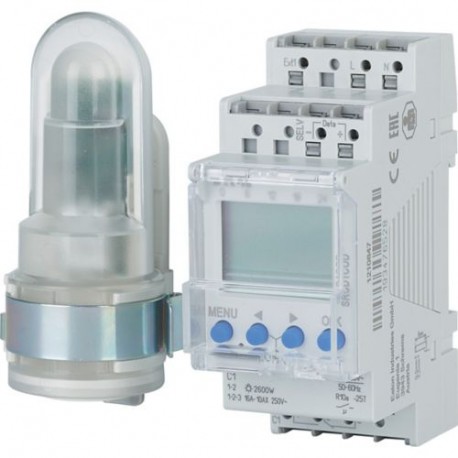

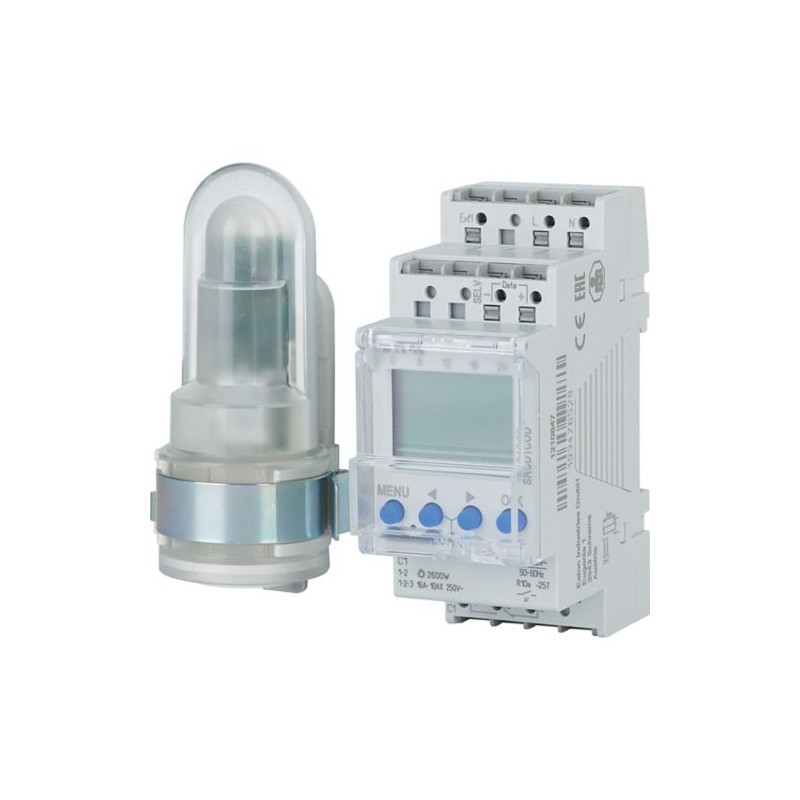

EATON - MOELLER SRCD1COD 196847 Y7-196847 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SRCD1COD 196847 Y7-196847 EATON ELECTRIC Digital Light intensity time switch, DIN rail 2 TE, weekly program,..

Reference: SRCD1COD

Code: 196847

Catalog Number: Y7-196847

Manufacturer: EATON - MOELLER

Description:

Digital Light intensity time switch, DIN rail 2 TE, weekly program, 1 channel, changeover contact, external light sensor Surface-mounted, 1-99000 Lux, push terminals
SRCD1COD
Eaton Distribution parts. Digital Light intensity time switch, DIN rail 2 TE, weekly program, 1 channel, changeover contact, external light sensor Surface-mounted, 1-99000 Lux, push terminals
Digital Twilight switch with integrated weekly timer for distribution board, 35,8mm width, External light sensor Surface-mounted with 1,5 m connecting cable included in delivery (IP55), Variable lux values can be set for each day for each day of the week, Fixed ON and OFF times (e.g. nighttime interruption), can be programmed independent of brightness, Variable lux values and switching times can be set for each special program, Switching brightness digitally adjustable 1 - 99000 Lux, Adjustable On and Off switching delay to avoid switching errors caused by lightninh or car headlights etc. Preset 1 minute , Adjustable On and Off switching delay, Onscreen display of channel and switching status as well as current lux value, DuoFix spring terminals for 2 conductors per connection terminal,

Categories:

  • Devices for distribution board-/surface mounting > Twilight switch for distribution board
  • EATON - MOELLER > Modular Switchgear – Others and Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 229,20 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

General specifications

Product Name
Eaton Distribution parts
Catalog Number
196847
Model Code
SRCD1COD
EAN
9008790990434
Product Length/Depth
69.2 mm
Product Height
90.1 mm
Product Width
35.8 mm
Product Weight
0.179 kg
Compliances
RoHS conform

Product specifications

Mounting method
DIN rail
Features
Push button input
With programmable overnight shutoff
Adjustment range brightness value - max
99000 lx
Adjustment range brightness value - min
1 lx
Conductor length light sensor - max
100 m
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Heat dissipation capacity
1.5 W
Incandescent lamp load - max
2600 W
Load fluorescent lamp - max
2600 VA
Load fluorescent lamp (duo circuit) - max
2600 VA
Load fluorescent lamp (parallel compensated) - max
1300 VA
Rated operational voltage (Ue) - max
230 V
Degree of protection
IP20
Rated switch current
16 A
Static heat dissipation, non-current-dependent
0.8 W
Switching current (cos phi = 0.6) - max
10 A
Switching power LED - max
600 W
Voltage rating of light sensor
0 V
Width in number of modular spacings
2
Built-in depth
69.2 mm
Degree of protection (light sensor)
IP55
Mounting method (light sensor)
Wall surface mounted
Protection class (light sensor)
III

ETIM for 196847 Modular devices for distribution board/surface mounting (EC001645)

Feature nameRated voltage (EF000228)
Feature value230 V
Feature nameRated frequency (EF001663)
Feature value50 Hz
Feature nameMax. incandescent lamp load (EF004952)
Feature value2600 W
Feature nameMax. load fluorescent lamp (EF004971)
Feature value2600 VA
Feature nameMax. load fluorescent lamp (Duo circuit) (EF004972)
Feature value2600 VA
Feature nameMax. load fluorescent lamp (parallel compensated) (EF004973)
Feature value1300 VA
Feature nameMax. switching power LED (EF015953)
Feature value600 W
Feature nameMax. switching current (cos phi = 0.6) (EF004920)
Feature value10 A
Feature nameRated switch current (EF006706)
Feature value16 A
Feature nameAdjustment range brightness value (EF006708)
Feature value1 lx
Feature nameWith programmable overnight shutoff (EF005062)
Feature valueYes
Feature namePush button input (EF005335)
Feature valueYes
Feature nameRated voltage light sensor (EF004515)
Feature value0 V
Feature nameMax. conductor length light sensor (EF004970)
Feature value100 m
Feature nameProtection class light sensor (EF006709)
Feature valueIII
Feature nameMounting method light sensor (EF006710)
Feature valueWall surface mounted
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameBuilt-in depth (EF000218)
Feature value69.2 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameDegree of protection (IP) light sensor (EF005265)
Feature valueIP55

DATASHEET - PDF

Title
Size
Type
SRCD1COD Y7-196847 196847 EN_167383.pdf
104 Kbytes
PDF EATON XEFFECT SWITCHGEAR RANGE EN
8 Mbytes
PDF CATALOGUE EATON EN
38 Mbytes
